YFM-M336J

Name: YFM-M336J
Brand: YFM

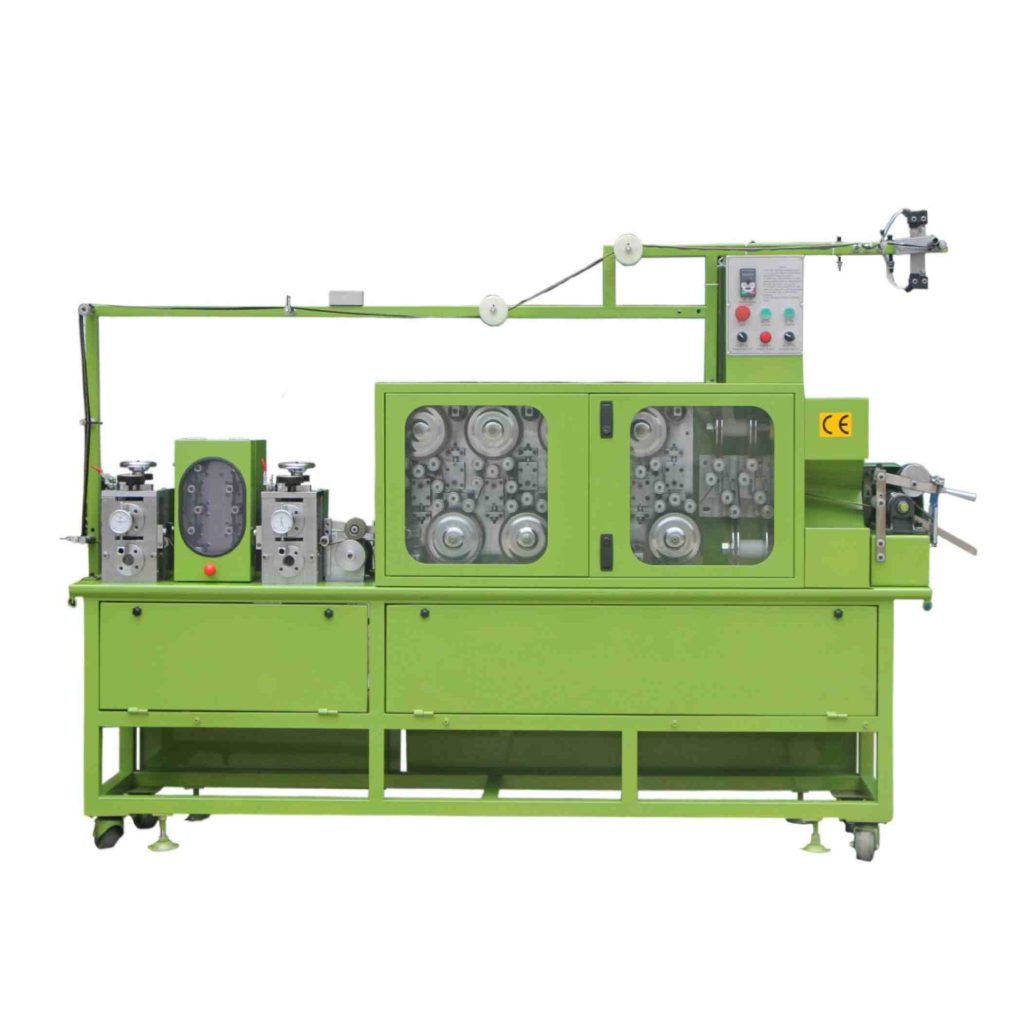

Auto metal chain rolling polishing M/C (12 wheels)

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

The function of this machine is to press, grind and polish the metal chain of the open-end or two way zipper which has been made teeth.

Specifications

Model	YFM-M336J
Capacity	1200-1800Y/H
Power	2.8KW
Volt	3800V
Frequency	50 or 60 Hz
Motor	3 phase
Machine length	235cm
Machine width	48cm
Machine height	165cm
Net weight	595kgs
Gross weight	675kgs
Dimension (LWH)	25167181cm

Advantages

1. This machine has twelve polishing wheels.Eight of them are made of steel wires. They are responsible to grind and remove the burr on the surface of the zipper. The other four steel wire polishing wheels. They are responsible to polish the surface and every corner of the zipper teeth legs.

2. By using speed-adjusting motor, the speed of this machine can be changed according to polishing outcome. Generally, the production capacity is 1200Y-1800Y/H.
3.There is special dust-collecting system which can collect the brass powder and dust in order to avoid the operator breathe in too much brass powder and dust.

Download

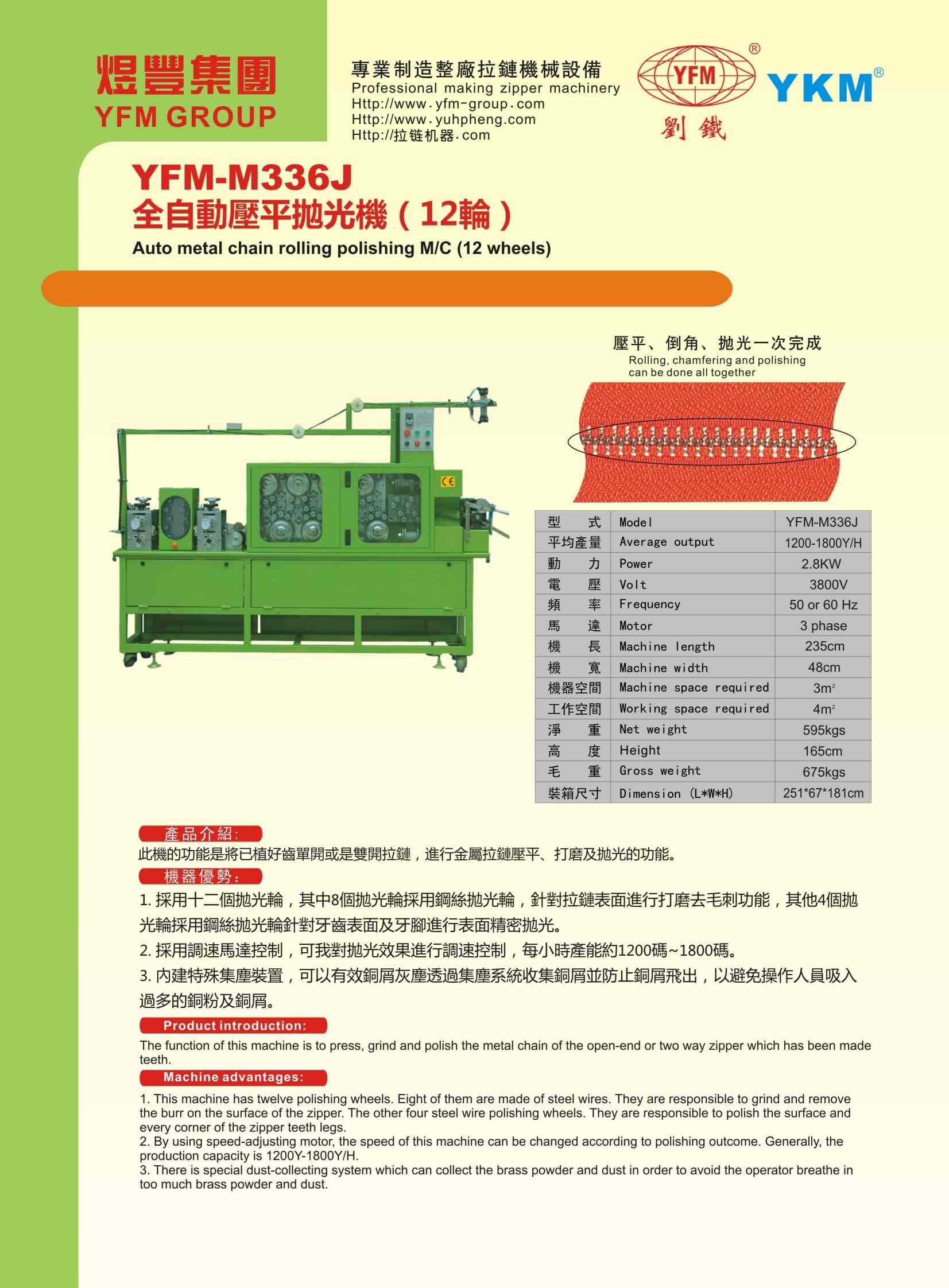

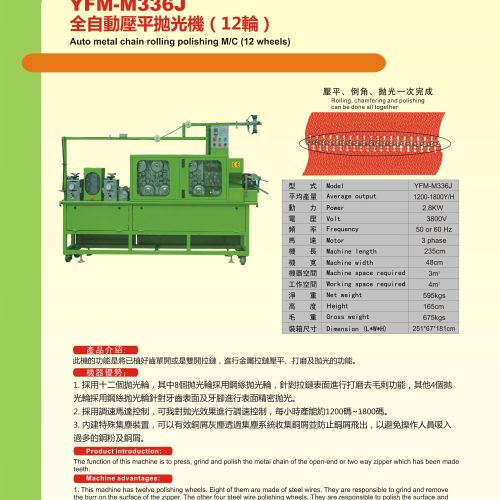

Product BrochurePreview Download
