YFM-M336P-S

Name: YFM-M336P-S
Brand: YFM

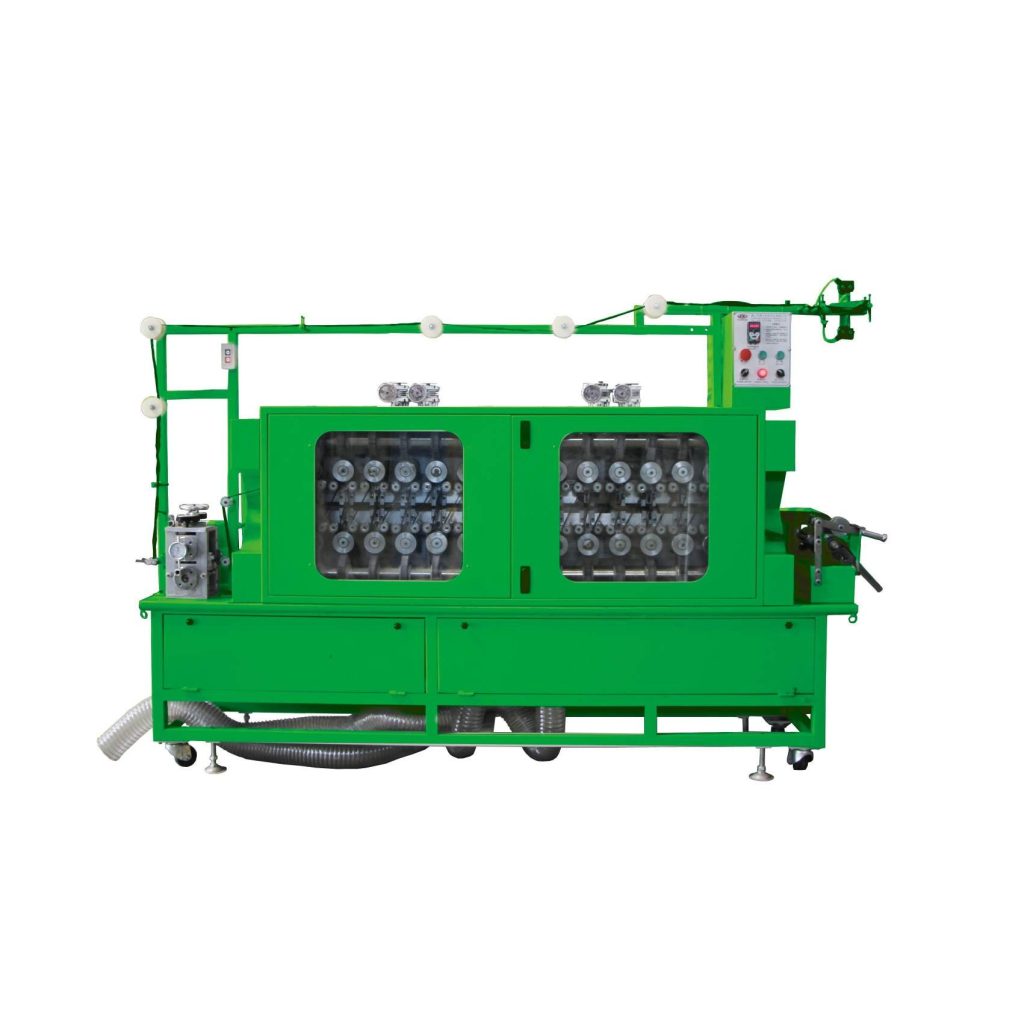

Auto metal chain rolling and sandpaper wheel polishing M/C (24 wheels)

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

The function of this machine s to press, grind and polish the metal chain zipper.

Specifications

Model	YFM-M336P-S
Capacity	800-1600Y/H
Power	4.5KW
Volt	380V
Frequency	50 or 60Hz
Motor	3Phases
Machine length	250cm
Machine width	48cm
Machine height	165cm
Net weight	600kgs
Gross weight	700kgs
Dimension (LWH)	28066173cm

Advantages

1. Using 24pcs of sandpaper polishing wheels with 3000rpm running speed to meticulous polish zipper surface by forward and reverse direction.

2. Using speed-adjusting motor, the speed of this machine can be changed according to polishing outcome. Generally, the production capacity is 1200Y-1600Y/H.

3. There is special dust-collecting system which can collect the brass powder and dust in order to avoid the operator breathe in too much brass powder and dust.

4. The distance between the zipper and the polishing brush can be adjusted from the adjustable devices from outside of the machine and precision can reach 0.04mm.

5. It is suitable for removing traces and nicks on metal teeth. After polishing, the zipper surface has a bright, smooth and non marking effect, which has a certain influence on the thickness of the teeth.

Download

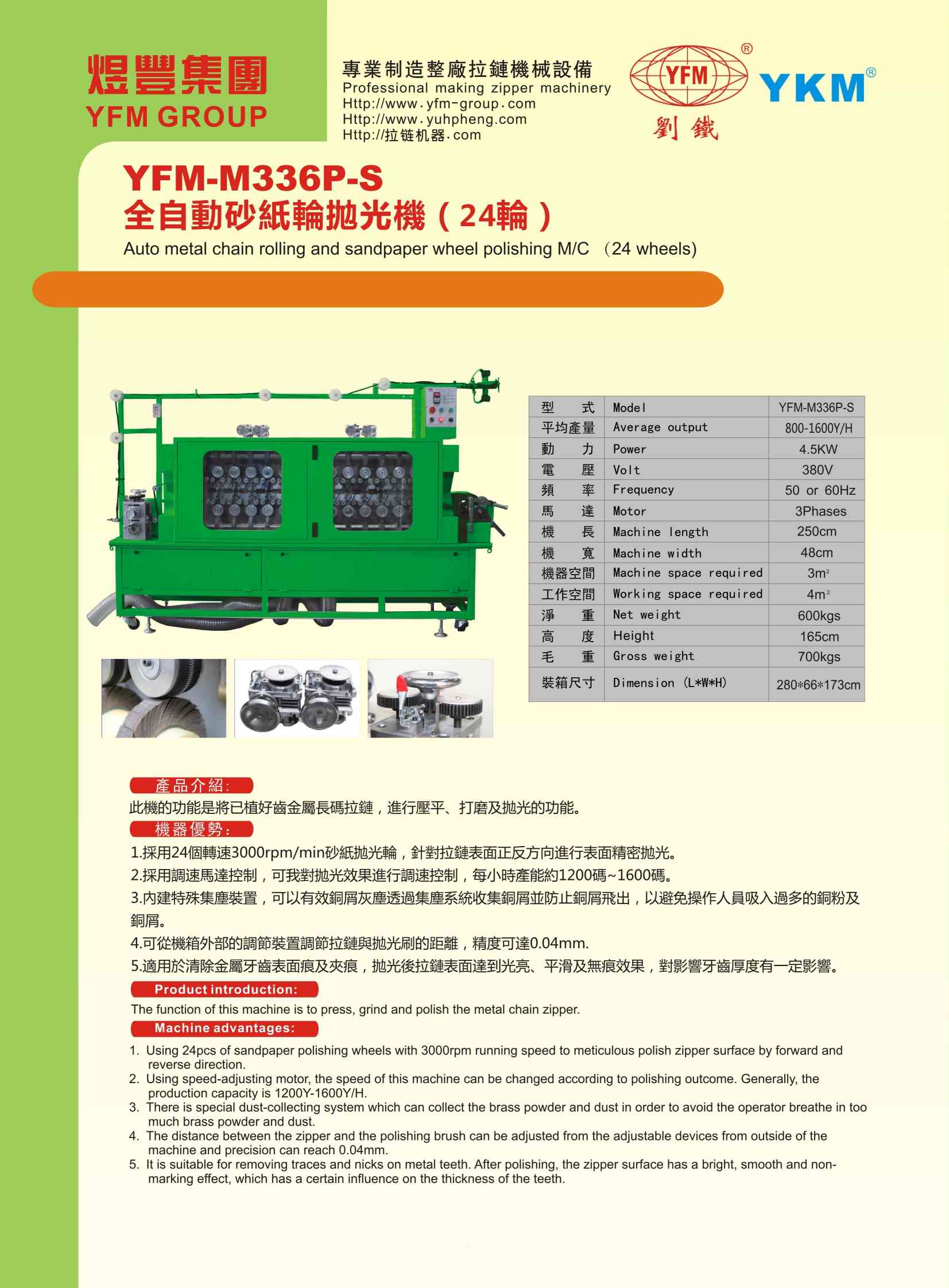

Product BrochurePreview Download
