YFM-M336CJ

Name: YFM-M336CJ
Brand: YFM

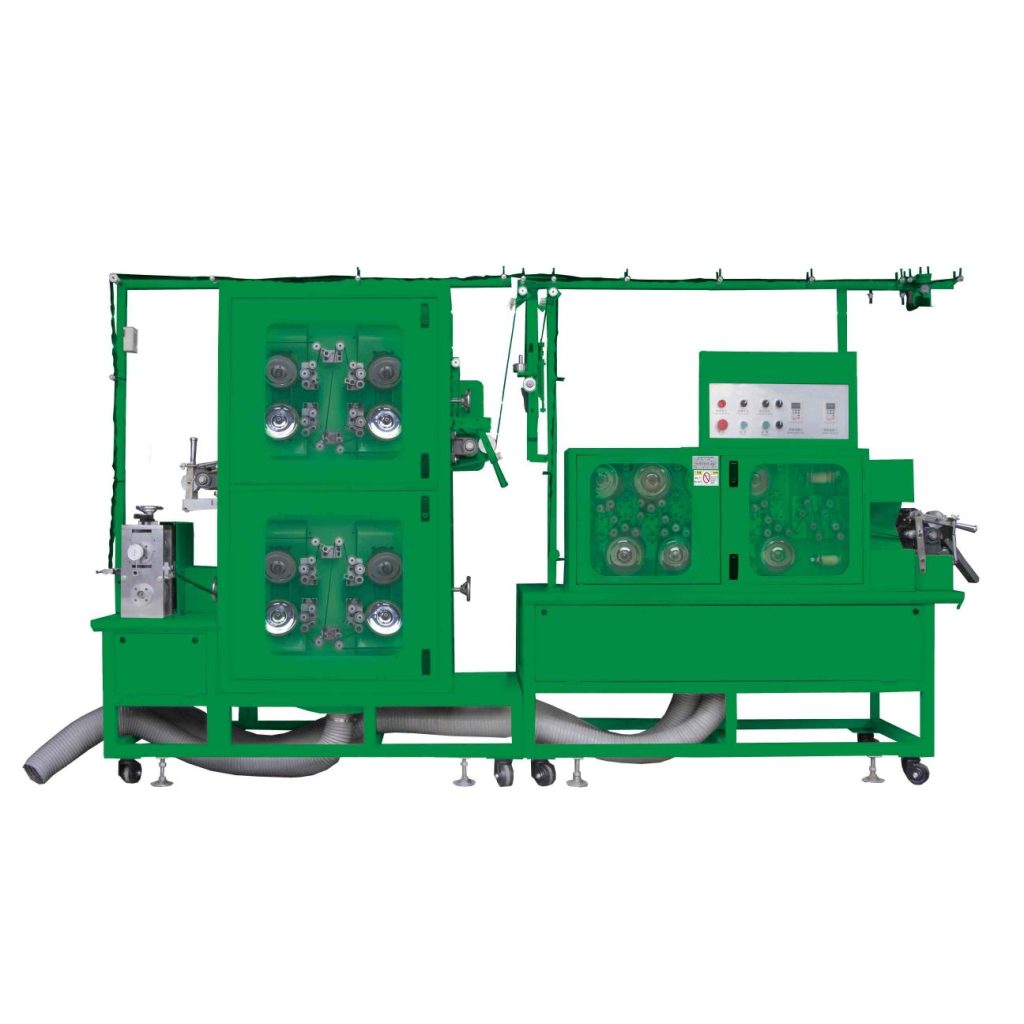

Auto metal zipper chain chamfer polishing and flat polishing machine

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

The function of this machine is to use 8 chamfered steel brush wheels to polish the side and bottom of the metal teeth, and then go through 12 standard flat polishing wheels to polish the metal surface. After polishing, all angles of the metal zipper teeth can be effectively polished.

Specifications

Model	YFM-M336CJ
Capacity	1200Y/H
Power	6.4KW
Volt	380V
Frequency	50 or 60Hz
Motor	3 Phases
Machine length	360cm
Machine width	60cm
Machine height	190cm
Net weight	800kgs
Gross weight	940kgs
Dimension (LWH)	38075205cm

Advantages

1. Using 8 special 45-degree angle polishing wheels can effectively polish the bottom edge of the tooth angle.

2. The built-in special dust collecting device can effectively collect copper dust through the dust collection system and prevent the copper dust from flying out, so as to prevent the operator from inhaling excessive copper powder and copper dust.
3.The zipper polished by this equipment can improve the color fastness of plating, make the color of plating more stable and save the cost of plating chemicals.
