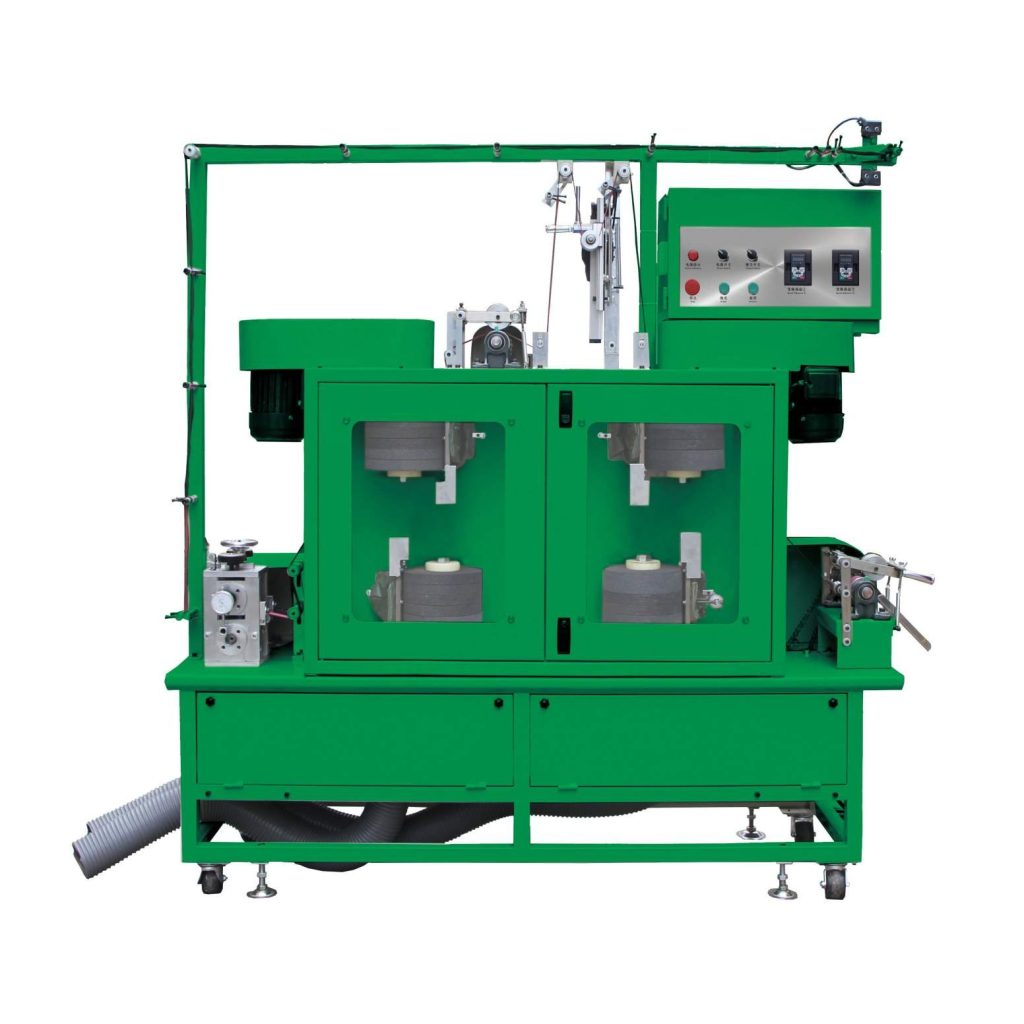

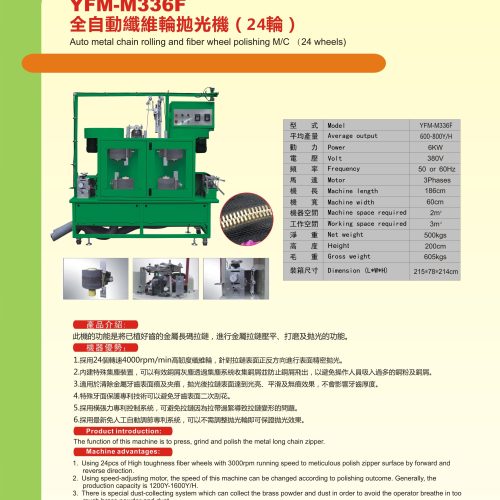

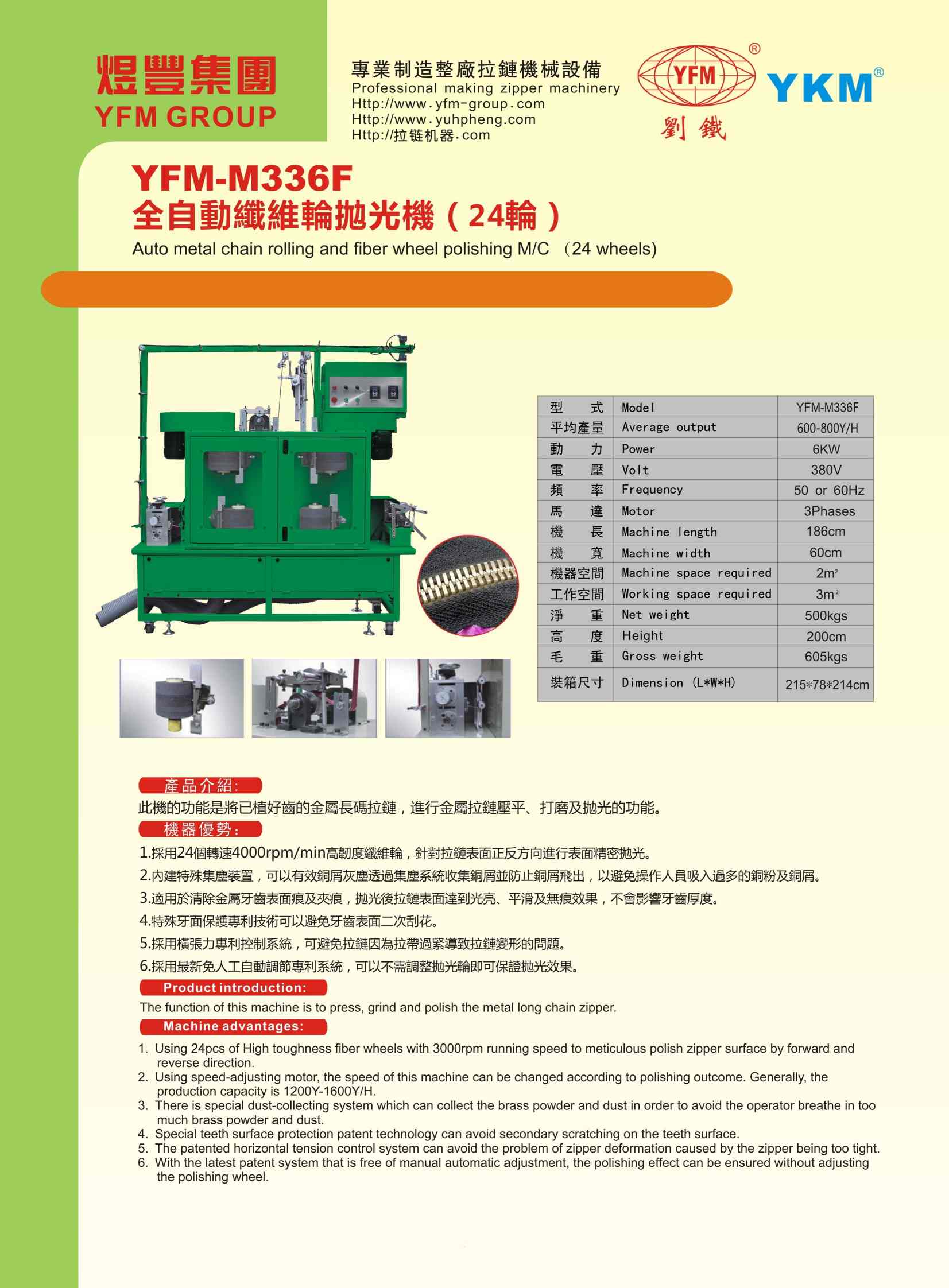

Auto metal chain rolling and fiber wheel polishing M/C
(24 wheels)
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Introduction
The function of this machine is to press, grind and polish the metal long chain zipper.
Specifications
Model
YFM-M336F
Capacity
600-800Y/H
Power
6KW
Volt
380V
Frequency
50 or 60Hz
Motor
3Phases
Machine length
186cm
Machine width
60cm
Machine height
200cm
Net weight
500kgs
Gross weight
605kgs
Dimension (L*W*H)
215*78*214cm
Advantages
1. Using 24pcs of High toughness fiber wheels with 3000rpm running speed to meticulous polish zipper surface by forward and reverse direction.
2. Using speed-adjusting motor, the speed of this machine can be changed according to polishing outcome. Generally, the production capacity is 1200Y-1600Y/H.
3. There is special dust-collecting system which can collect the brass powder and dust in order to avoid the operator breathe in too much brass powder and dust.
4. Special teeth surface protection patent technology can avoid secondary scratching on the teeth surface.
5. The patented horizontal tension control system can avoid the problem of zipper deformation caused by the zipper being too tight.
6.With the latest patent system that is free of manual automatic adjustment, the polishing effect can be ensured without adjusting the polishing wheel.
