YFM-302NCA

Name: YFM-302NCA
Brand: YFM

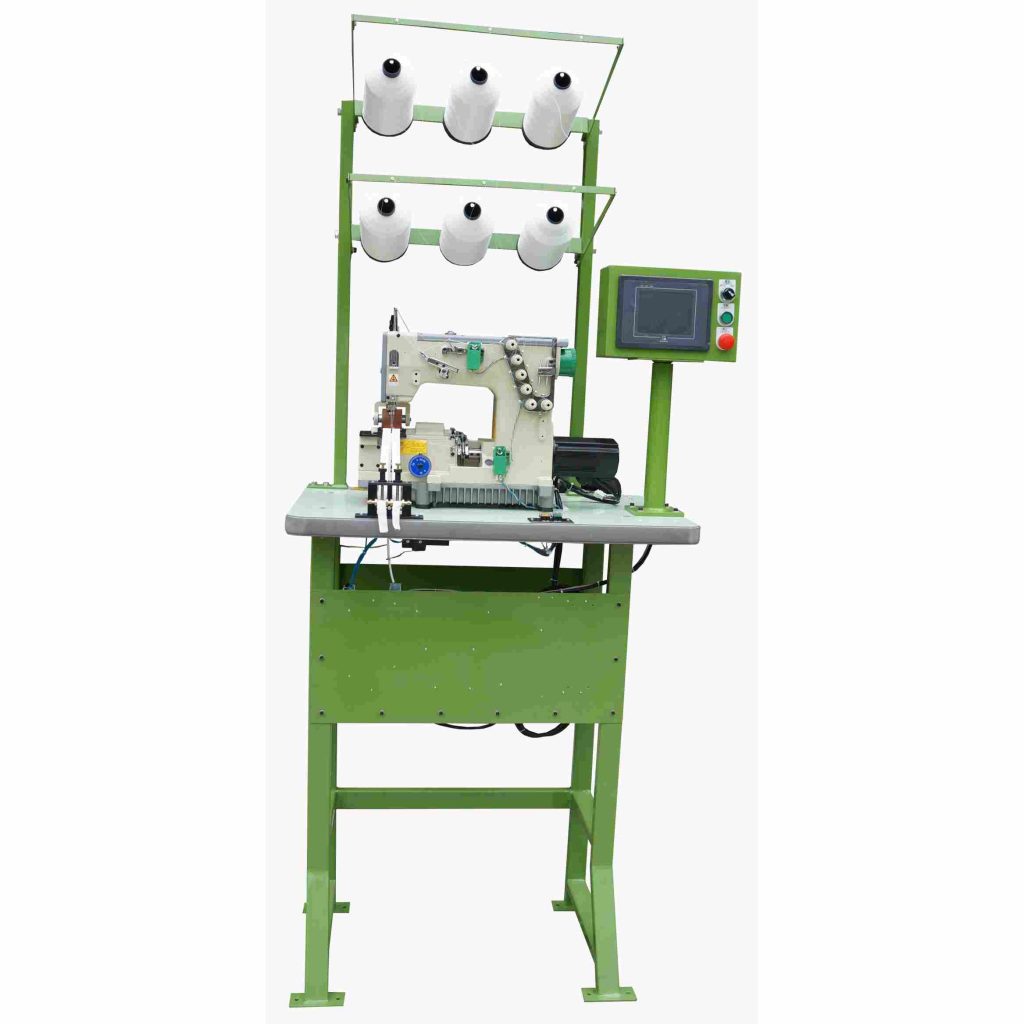

Auto nylon high speed sewing machine by computer control

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

The function of this machine is using top and bottom sewing thread to sew nylon long chain teeth on the zipper tape becomes nylon long chain zipper.

Specifications

Model	YFM-302NCA
Capacity	250M/H
Power	0.6KW
Volt	220V
Frequency	50/60Hz
Motor	1Phase
Machine length	94cm
Machine width	55cm
Machine height	206cm
Net weight	90kgs
Gross weight	188kgs
Dimension (LWH)	105x75x220cm

Advantages

1.Easy to operate this machine and one operator can operate many machines.This machine can make stable quality long chain.

2. Using HMI touch screen and step motor to drive this machine directly and you can set up the screen to change the motor speed,the maximum speed is 3200 rpm.
3.You can use touch screen to set up the order length quantity and can check the production quantity.The machine will be stopped whenit reach the request order quantity.

4. By adopting human-machine interface control, this machine can be operated easily. If the machine stops suddenly in operation, the reasons will be shown on the screen which is very useful for the operator to deal with the problems. Moreover, you can find out the information such as what the problem was, and when the problem happened.

Download

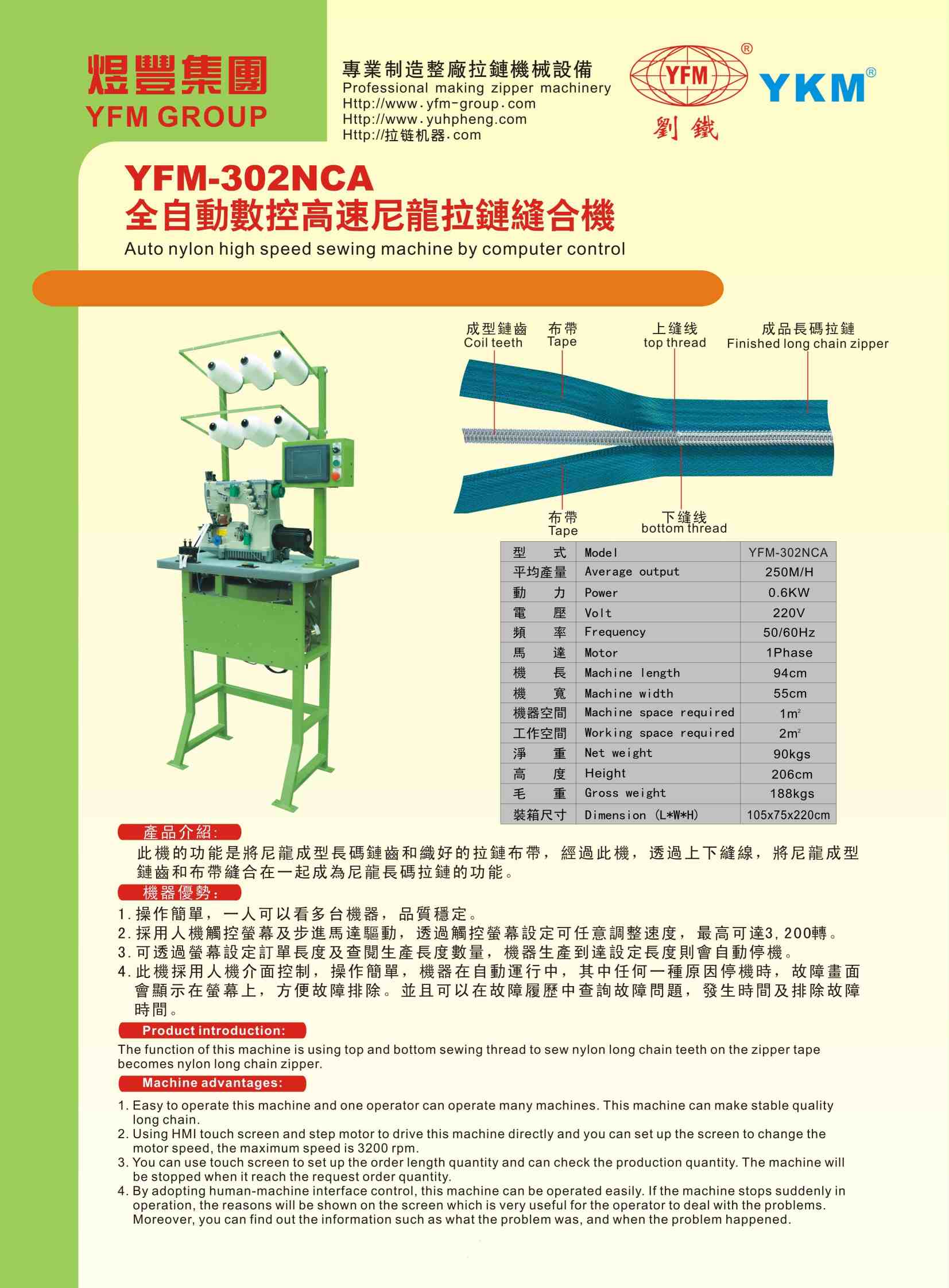

Product BrochurePreview Download
