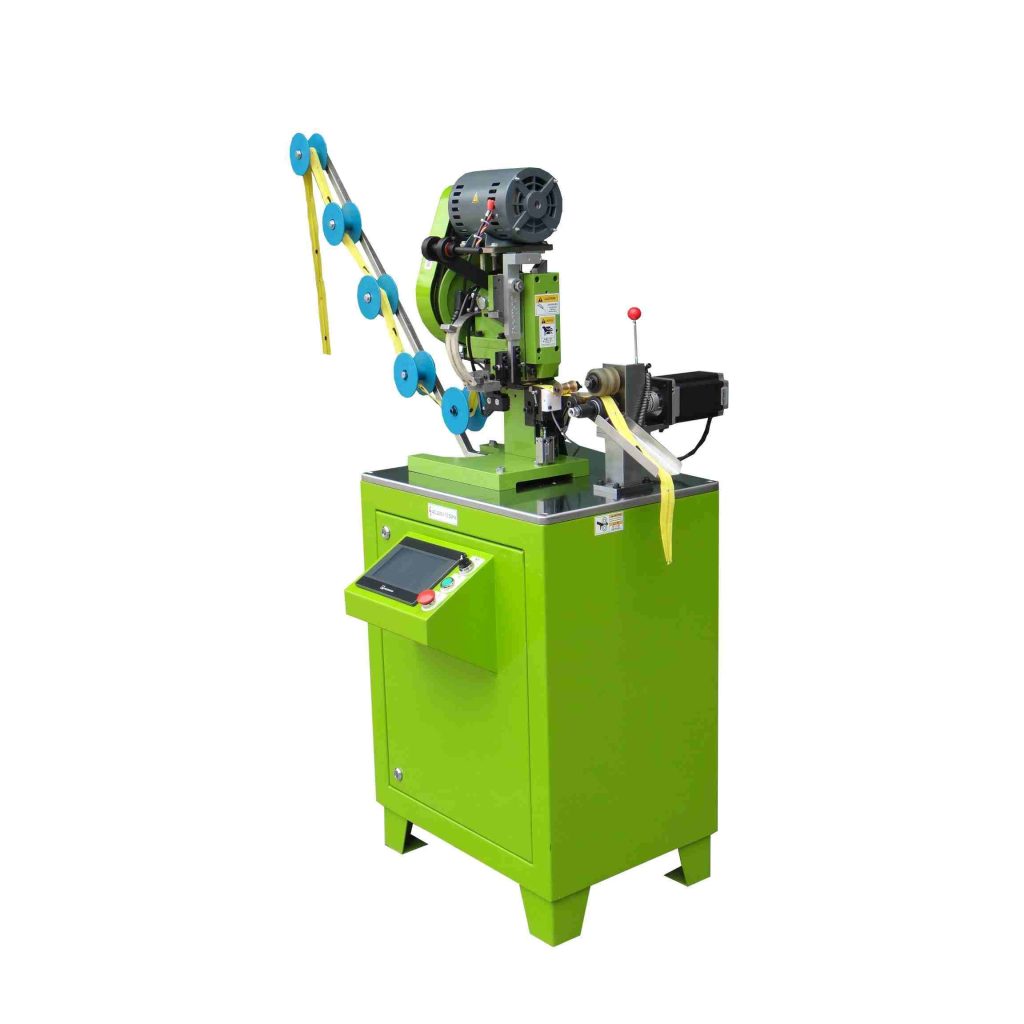

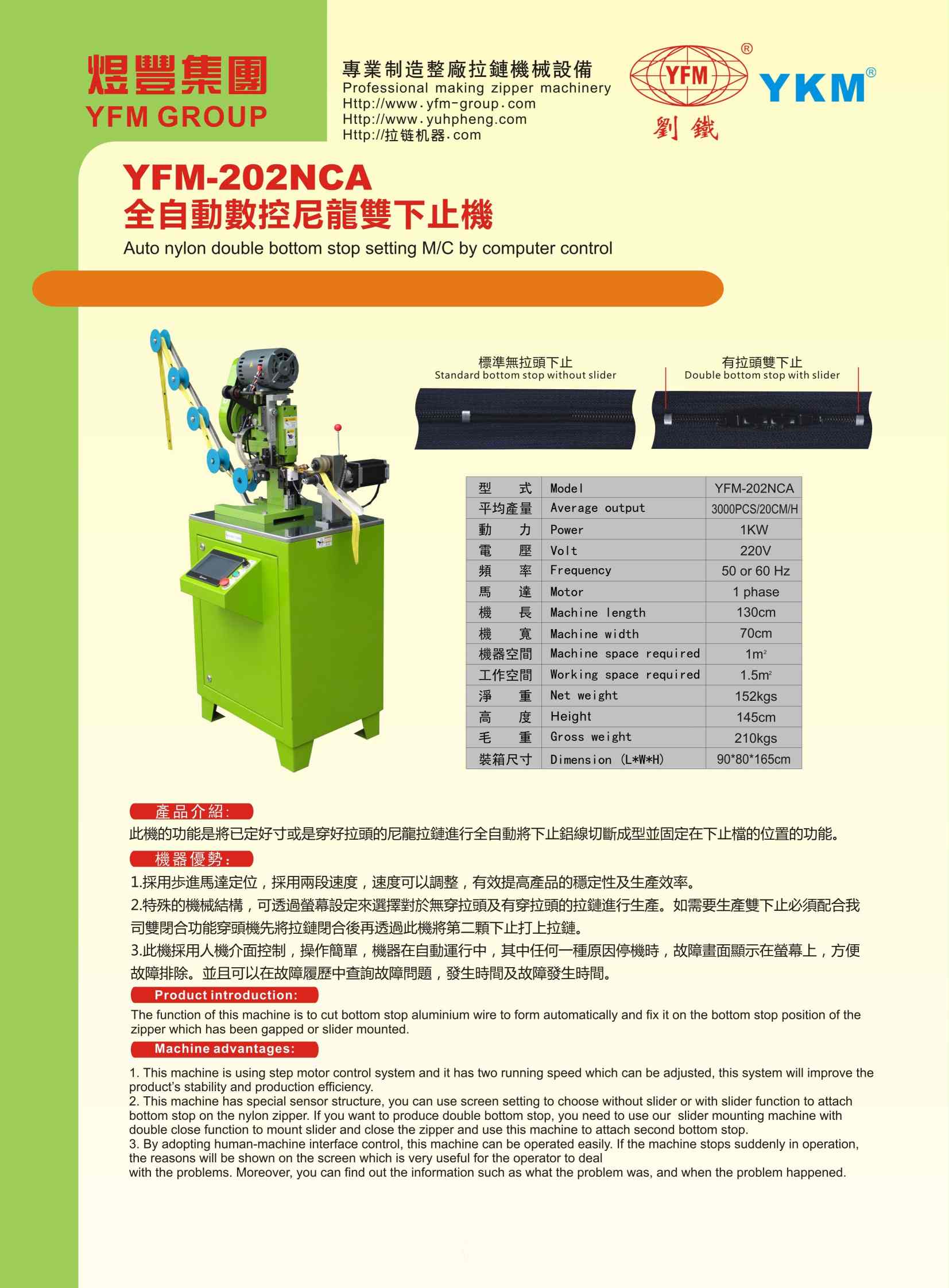

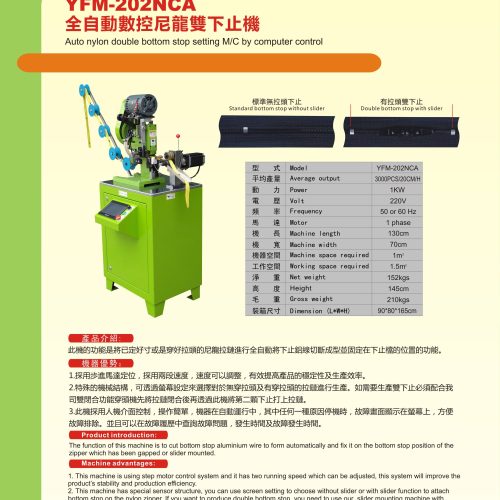

Auto nylon double bottom stop setting M/C by computer control
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Introduction
The function of this machine is to cut bottom stop aluminium wire to form automatically and fix it on the bottom stop position of the zipper which has been gapped or slider mounted.
Specifications
Model
YFM-202NCA
Capacity
3000PCS/20CM/H
Power
1KW
Volt
220V
Frequency
50/60Hz
Motor
1 Phase
Machine length
130cm
Machine width
70cm
Machine height
145cm
Net weight
152kgs
Gross weight
210kgs
Dimension (L*W*H)
90*80*165cm
Advantages
1. This machine is using step motor control system and it has two running speed which can be adjusted, this system will improve the product's stability and production efficiency.
2. This machine has special sensor structure, you can use screen setting to choose without slider or with slider function to attach bottom stop on the nylon zipper. If you want to produce double bottom stop, you need to use our slider mounting machine with double close function to mount slider and close the zipper and use this machine to attach second bottom stop.
3. By adopting human-machine interface control, this machine can be operated easily. If the machine stops suddenly in operation,the reasons will be shown on the screen which is very useful for the operator to dealwith the problems. Moreover, you can find out the information such as what the problem was, and when the problem happened.
