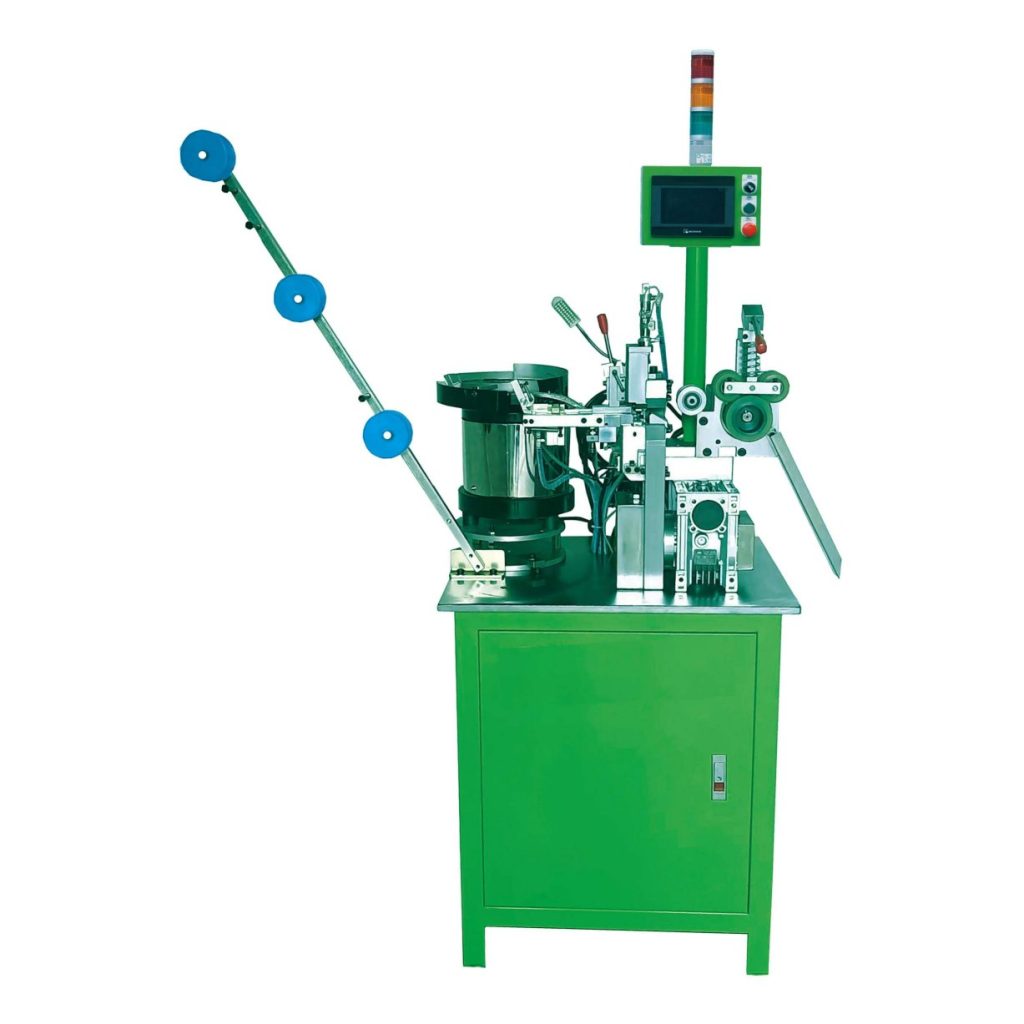

YFM-102MHCA-H - Bottom stop machine - YFM

YFM-102MHCA-H

Name: YFM-102MHCA-H
Brand: YFM

Auto metal H type bottom stop machine by computer control ( High speed)

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

The function of this machine is to make H type bottom stop and fix it on the bottom stop position of the metal long chain zipperautomatically, which has been gapped.

Specifications

Model	YFM-102MHCA-H
Capacity	3800PCS/20CM/H
Power	1.2KW
Volt	220V
Frequency	50/60HZ
Motor	1 Phase
Machine length	60cm
Machine width	60cm
Machine height	162cm
Net weight	178kgs
Gross weight	250kgs
Dimension (LWH)	8080180cm

Advantages

1.Using step motor to make zipper position control which can avoid teeth and bottom stop become skew.
2.With the top and bottom parallel pressing, required pressing thickness and required strength can be adjusted.
3.This machine can be used for H type bottom stop which made of plastic, zinc alloy, aluminum alloy, brass and with painting H type bottom stop.
4.By adopting human-machine interface control, this machine can be operated easily. If the machine stops suddenly in operation. the reasons will be shown on the screen which is very useful for the operator to deal with the problems. Moreover, you can find out the information such as what the problem was, and when the problem happened.
5.The structure of this machine is optimized and the production capacity is faster.

Download

Product BrochurePreview Download
