YFM-102MHCA

Name: YFM-102MHCA
Brand: YFM

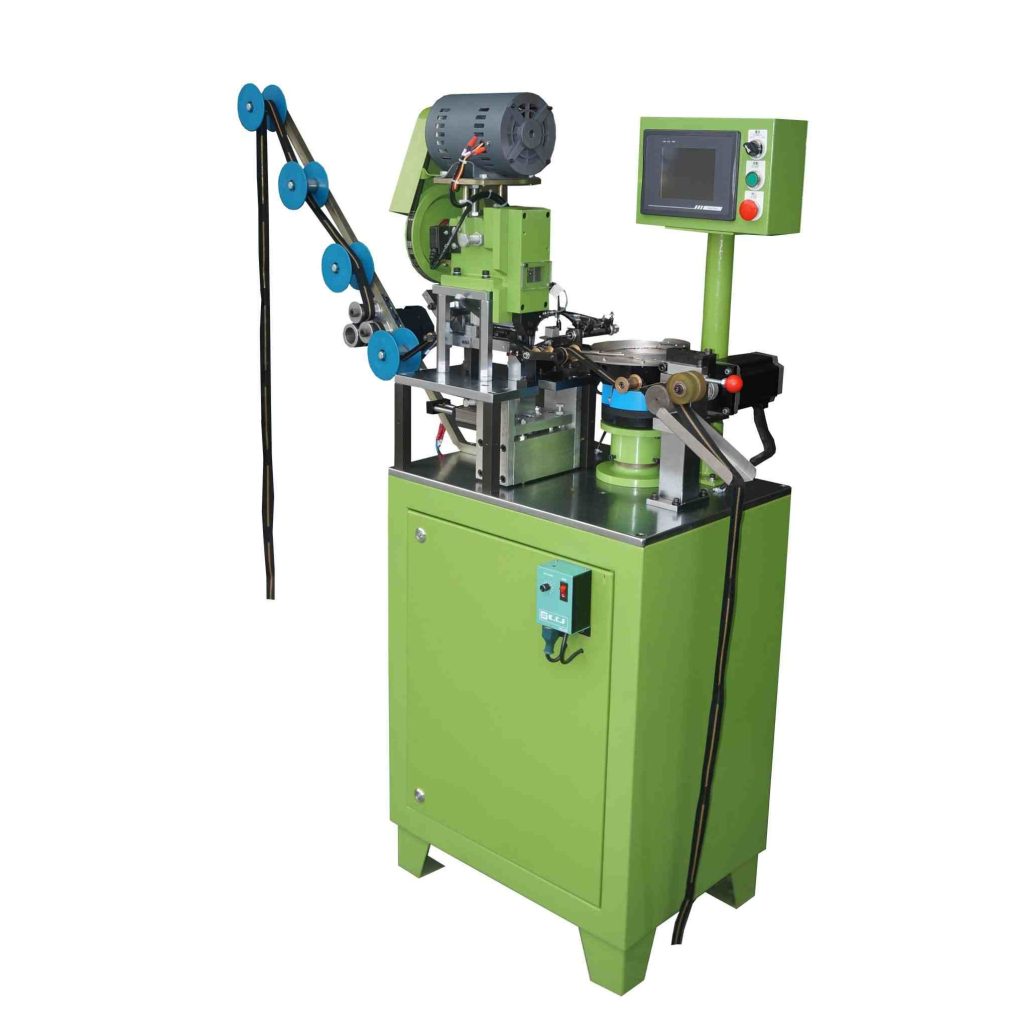

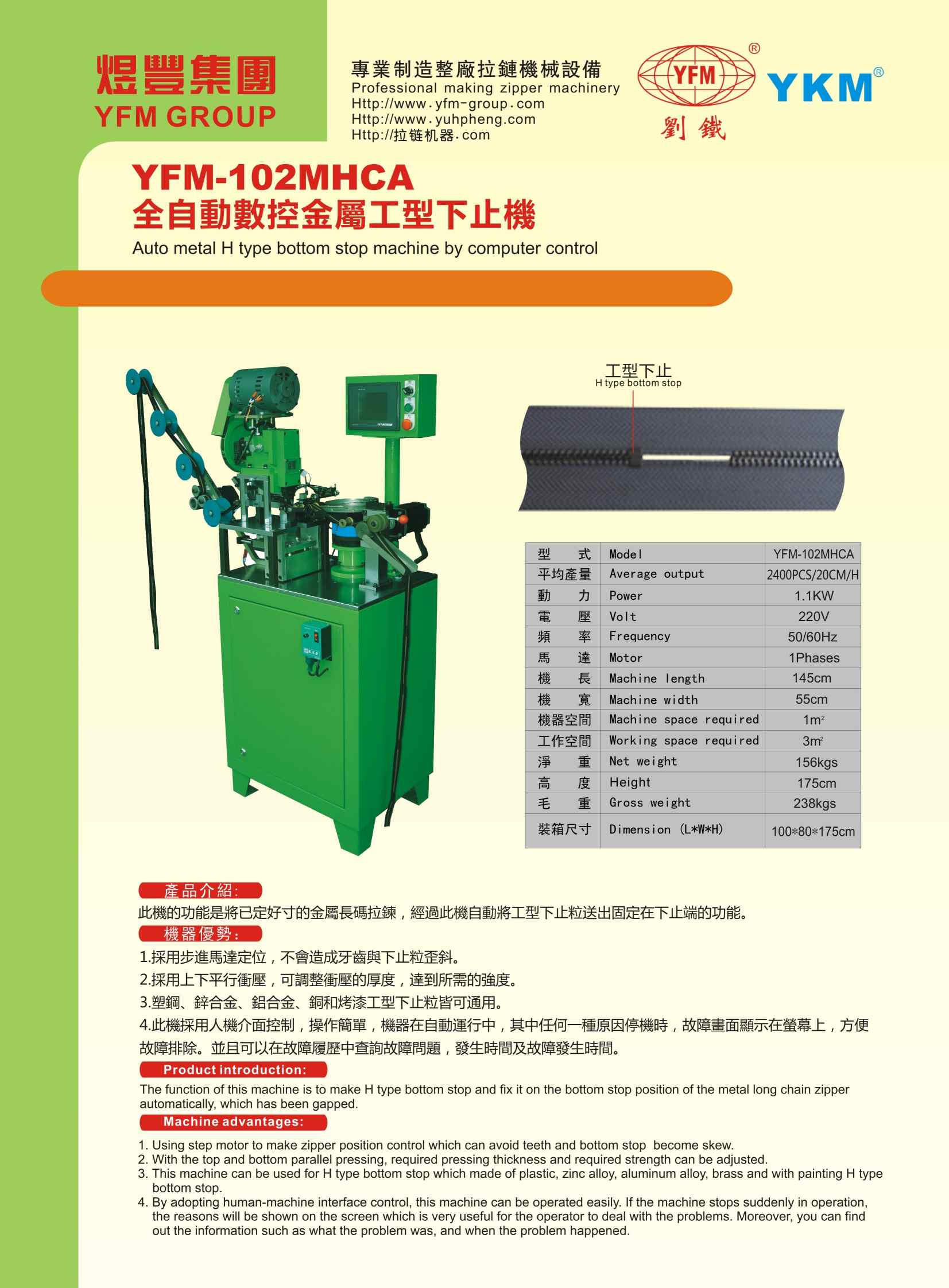

Auto metal H type bottom stop machine by computer control

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

The function of this machine is to make H type bottom stop and fix it on the bottom stop position of the metal long chain zipper automatically, which has been gapped.

Specifications

Model	YFM-102MHCA
Capacity	2400PCS/20CM/H
Power	1.1KW
Volt	220V
Frequency	50/60HZ
Motor	1Phase
Machine length	145cm
Machine width	55cm
Machine height	1675cm
Net weight	156kgs
Gross weight	238kgs
Dimension (LWH)	10080175cm

Advantages

1. Using step motor to make zipper position control which can avoid teeth and bottom stop become skew.

2. With the top and bottom parallel pressing, required pressing thickness and required strength can be adjusted.

3. This machine can be used for H type bottom stop which made of plastic, zinc alloy, aluminum alloy, brass and with painting H typel bottom stop.

4. By adopting human-machine interface control, this machine can be operated easily. If the machine stops suddenly in operation, the reasons will be shown on the screen which is very useful for the operator to deal with the problems. Moreover, you can find out the information such as what the problem was, and when the problem happened.
