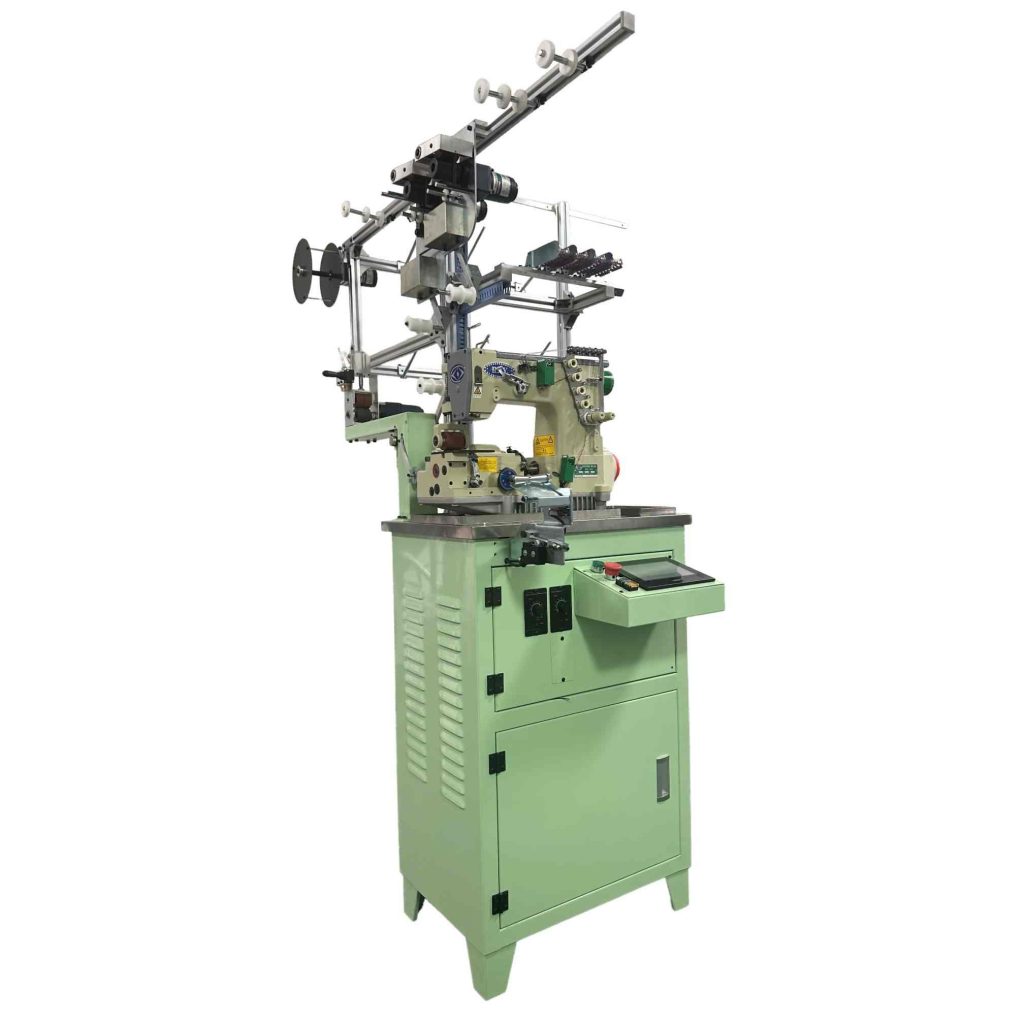

Auto nylon high speed tension control sewing machine
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Introduction
The function of this machine is using top and bottom sewing thread to sew nylon long chain teeth on the zipper tape becomes nylon long chain zipper.
Specifications
Model
YFM-302N-TC
Capacity
250M/H
Power
0.5KW
Volt
220V
Frequency
50/60Hz
Motor
1 Phase
Machine length
151cm
Machine width
66cm
Machine height
220cm
Net weight
135kgs
Gross weight
255kgs
Dimension (L*W*H)
155*70*210cm
Advantages
1.The sewing speed of this machine can be adjusted through the controller on the machine head.This machine can monitor the sewing speed. If the sewing speed is inconsistent, the machine will stop to avoid producing defective products
2.This machine uses the latest sewing thread tension control system.The sewing thread tension system can control the tension of the sewing thread, making the pattern and tooth pitch more stable and reducing the probability of sewing thread skipping.This machine can install sewing threads of more than 6KG each, which can reduce joints and the labor intensity of workers
3.This machine uses a tape tension system that can actively output tapes of the same length into the sewing machine, reducing the problem of C-shaped bends in the zipper and increasing the start-up rate. If the machine encounters an abnormal tape,it will stop immediately to reduce the occurrence of defective rates
4.This machine is equipped with a material collecting device to relieve the internal stress of the long chain zipper.The machine outlet can be equipped with a combination system or ironing system at any time to make the zipper tape smoother.
