YFM-103ARCA

Name: YFM-103ARCA
Brand: YFM

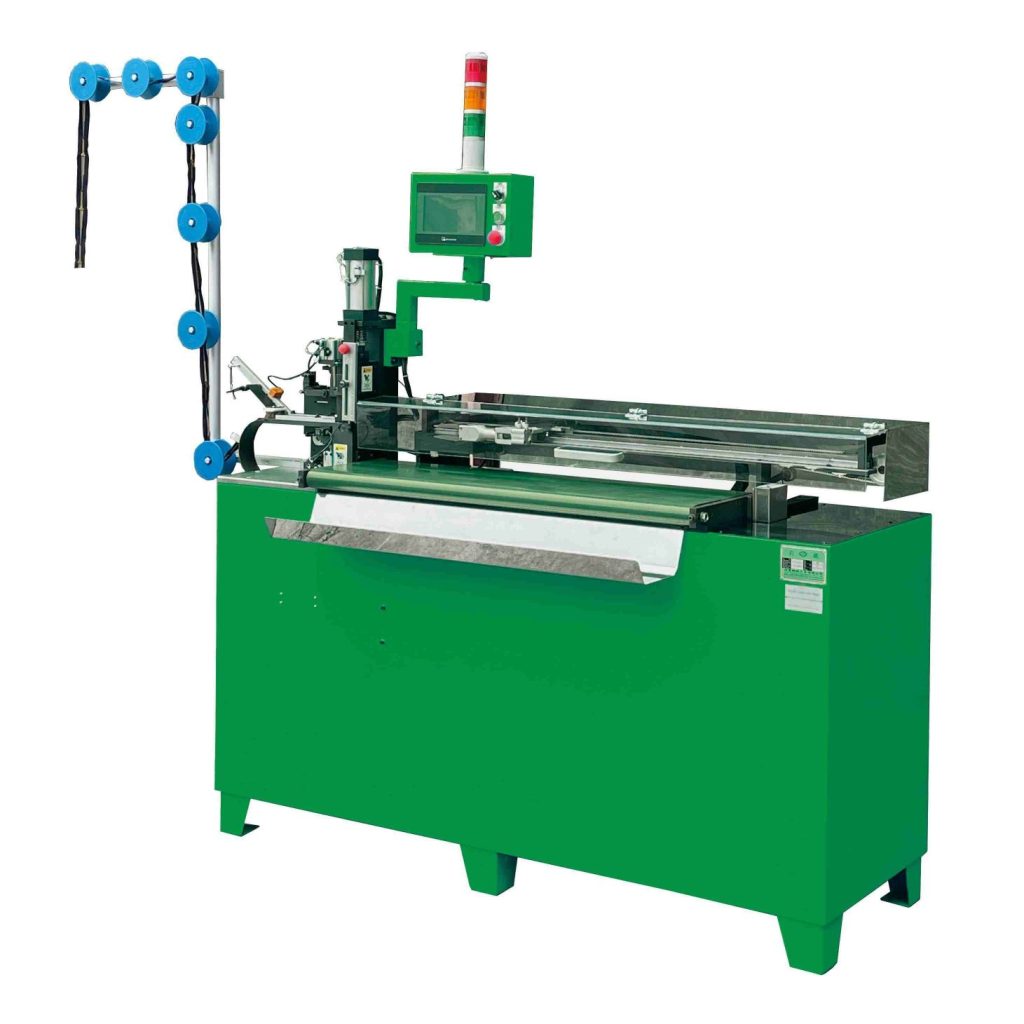

Auto pneumatic robot hand close end cutting machine by computer control

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

This machine is using pneumatic and robot hand transmission system to cut the nylon, metal, plastic or invisible (You can choose one) close end zipper automatically.

Specifications

Model	YFM-103ARCA
Capacity	1680PCS/20CM/H
Power	1.5KW
Volt	220V
Frequency	50/60HZ
Motor	1 Phase
Machine length	228cm
Machine width	85cm
Machine height	280cm
Net weight	190kgs
Gross weight	446kgs
Dimension (LWH)	105190205cm

Advantages

1. Yarn of cutting edge will not easy come off after ultrasonic cutting.
2.Using robot hand transmission system, this machine can adapt to different styles of special puller.

3. You can change the machine speed by HMI touch screen setting.
4.By adopting human-machine interface control, this machine can be operated easily. If the machine stops suddenly in operation, the reasons will be shown on the screen which is very useful for the operator to deal with the problems. Moreover, you can find out the information such as what the problem was, and when the problem happened.
5.This machine's counting system has continue counting and interval counting function. Using interval counting system can. save time for repeat counting of packing.

Download

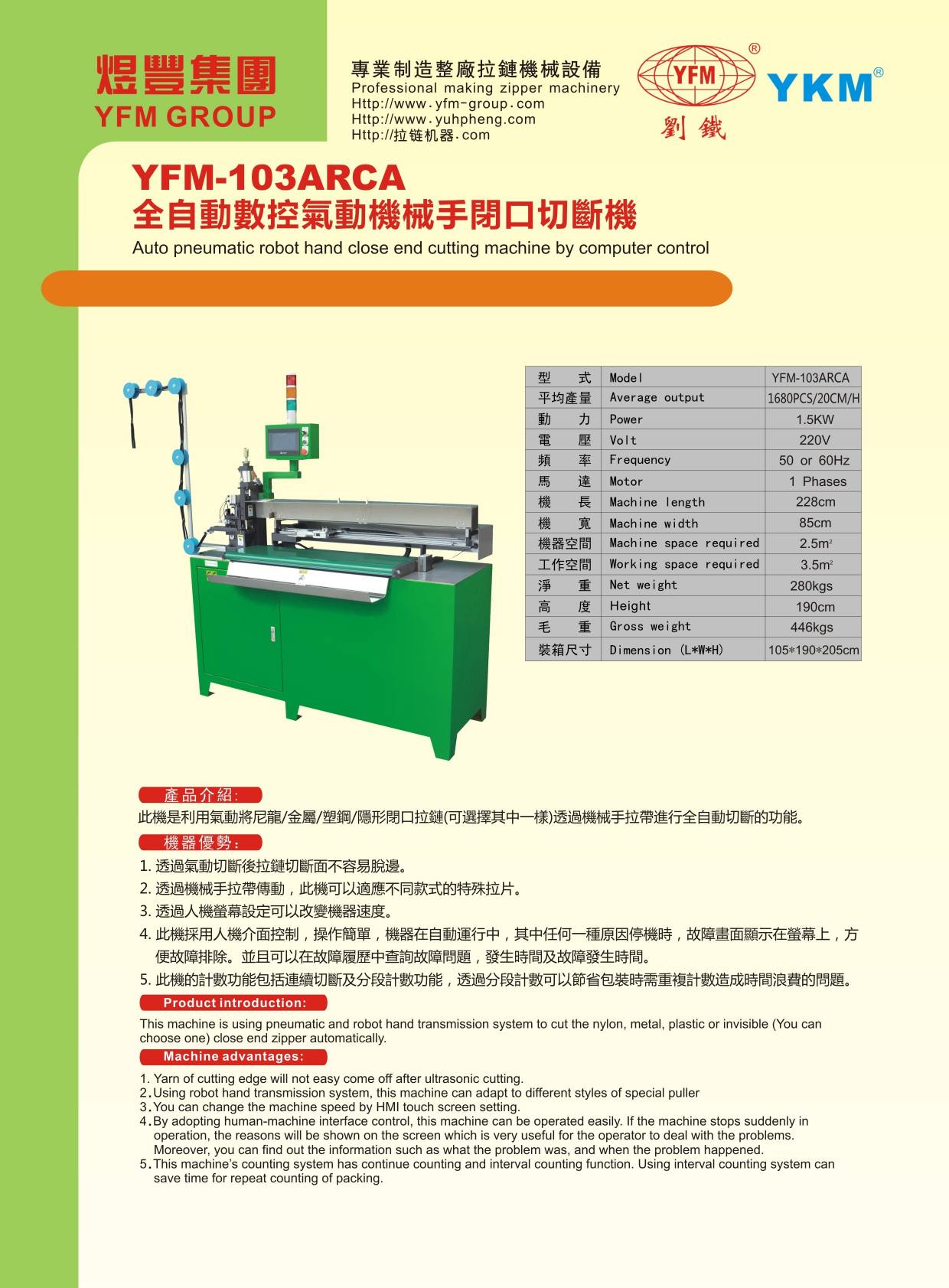

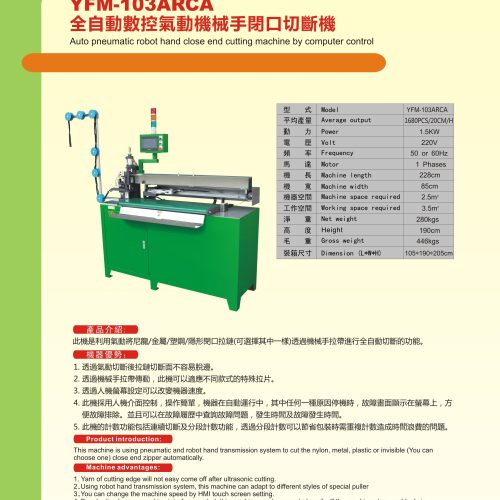

Product BrochurePreview Download
