YFM-103ACA

Name: YFM-103ACA
Brand: YFM

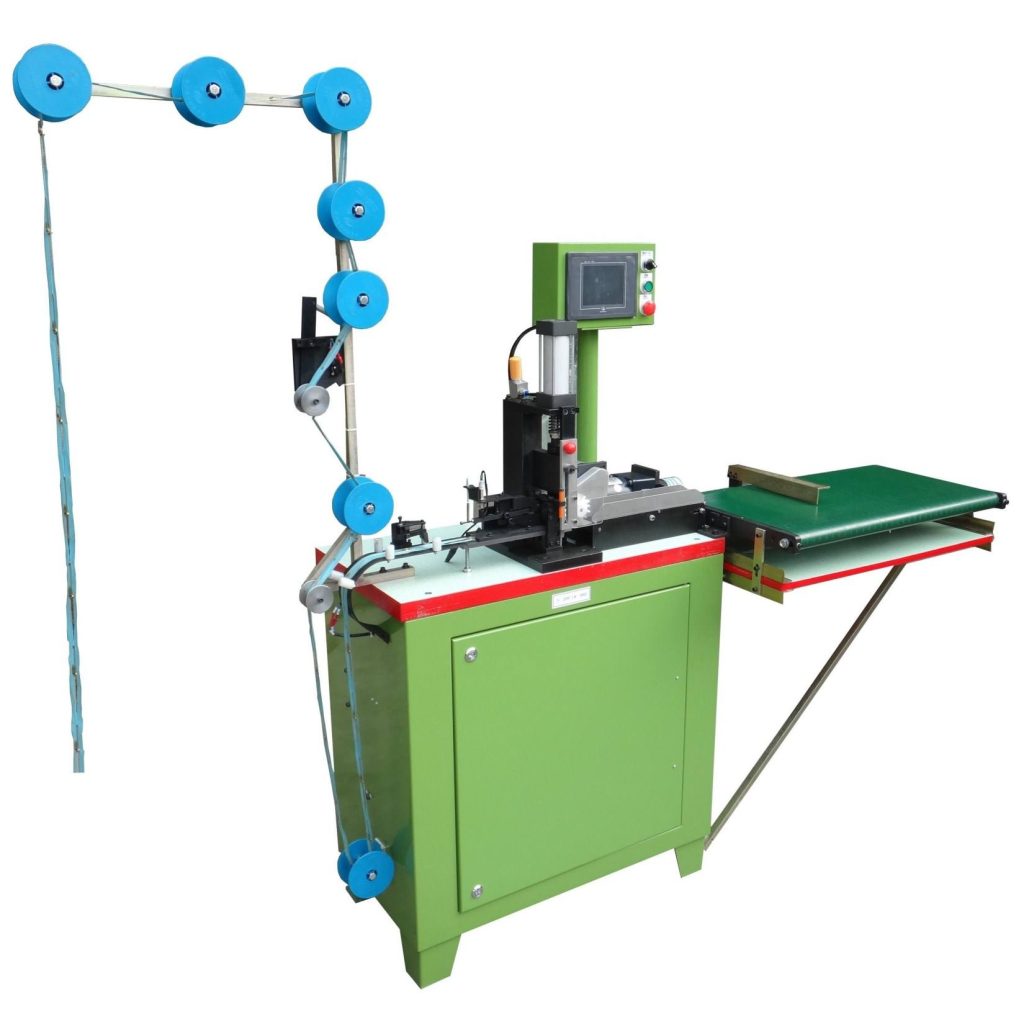

Auto pneumatic close end cutting machine by computer control

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

This machine is using pneumatic system to cut the gapped chain zipper or all kinds of close end zippers automatically

Specifications

Model	YFM-103ACA
Capacity	4000PCS/20CM/H
Power	1.5KW
Volt	220V
Frequency	50/60HZ
Motor	1 Phase
Machine length	215cm
Machine width	60cm
Machine height	179cm
Net weight	170kgs
Gross weight	280kgs
Dimension (LWH)	19080160cm

Advantages

1. Using pneumatic cutting system to cut zipper which can make yam of cutting edge will not easy come off after pneumatic cutting and the tape color of cutting edge will not be changed after cutting.

2. This machine can adapt to different stvles of fancy pullers (Puller's width is not exceed 1.5cm, the length is not exceed 3cm).

3. This machine is using step motor to control the zipper position and you can control the cutting speed and cutting edge position by HMI screen setting.

4. By adopting human-machine interface control, this machine can be operated easily. If the machine stops suddenly in operation, the reasons will be shown on the screen which is very useful for the operator to deal with the problems. Moreover, you can find out the information such as what the problem was, and when the problem happened.
