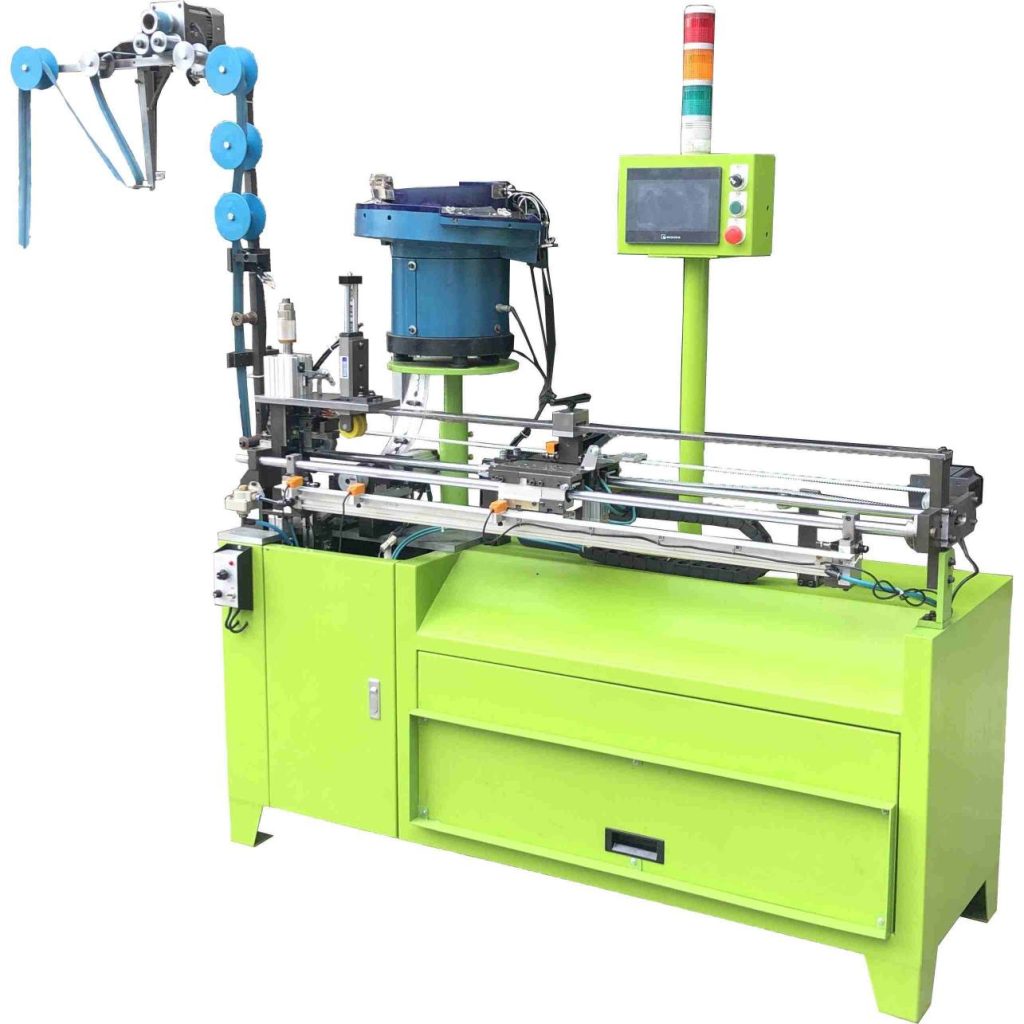

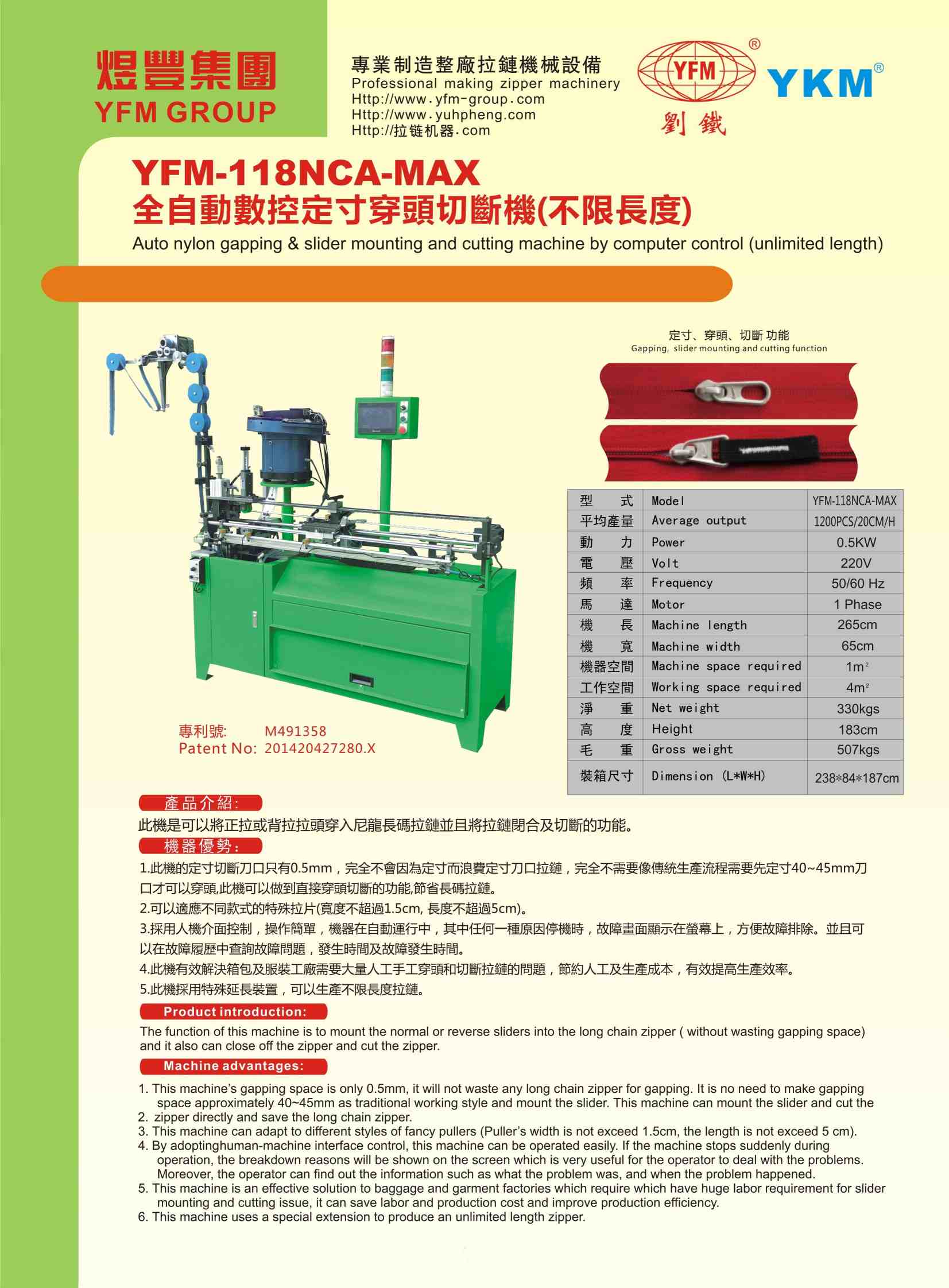

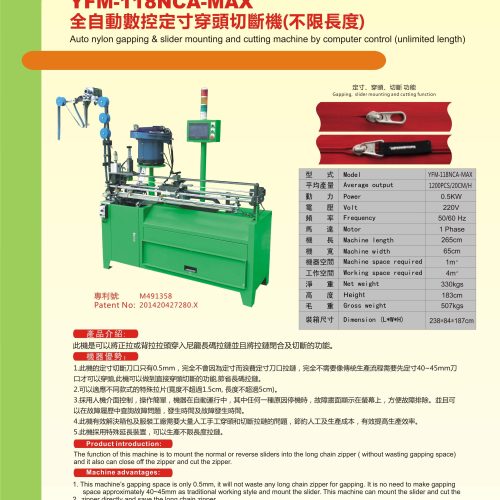

Auto nylon gapping & slider mounting and cutting machine by computer control (unlimited length)
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Introduction
The function of this machine is to mount the normal or reverse sliders into the long chain zipper (without wasting gapping space)and it also can close off the zipper and cut the zipper.
Specifications
Model
YFM-118NCA-MAX
Capacity
1200PCS/20CM/H
Power
0.5KW
Volt
220V
Frequency
50/60HZ
Motor
1 Phase
Machine length
265cm
Machine width
65cm
Machine height
183cm
Net weight
330kgs
Gross weight
507kgs
Dimension (L*W*H)
238*84*187cm
Advantages
1. This machine's gapping space is only 0.5mm, it will not waste any long chain zipper for gapping. It is no need to make gappinglspace approximately 40-45mm as traditional working style and mount the slider. This machine can mount the slider and cut the zipper directly and save the long chain zipper.
2. This machine can adapt to different stvles of fancy pullers (Puller's width is not exceed 1.5cm, the length is not exceed 5 cm).
3. By adoptinghuman-machine interface control, this machine can be operated easily. If the machine stops suddenly during Moreover, the operator can find out the information such as what the problem was, and when the problem happened. loperation, the breakdown reasons will be shown on the screen which is very useful for the operator to deal with the problems.
4. This machine is an effective solution to baggage and garment factories which require which have huge labor requirement for slider mounting and cutting issue, it can save labor and production cost and improve production efficiency.
5. This machine uses a special extension to produce an unlimited length zipper.
