YFM-YG027A

Name: YFM-YG027A
Brand: YFM

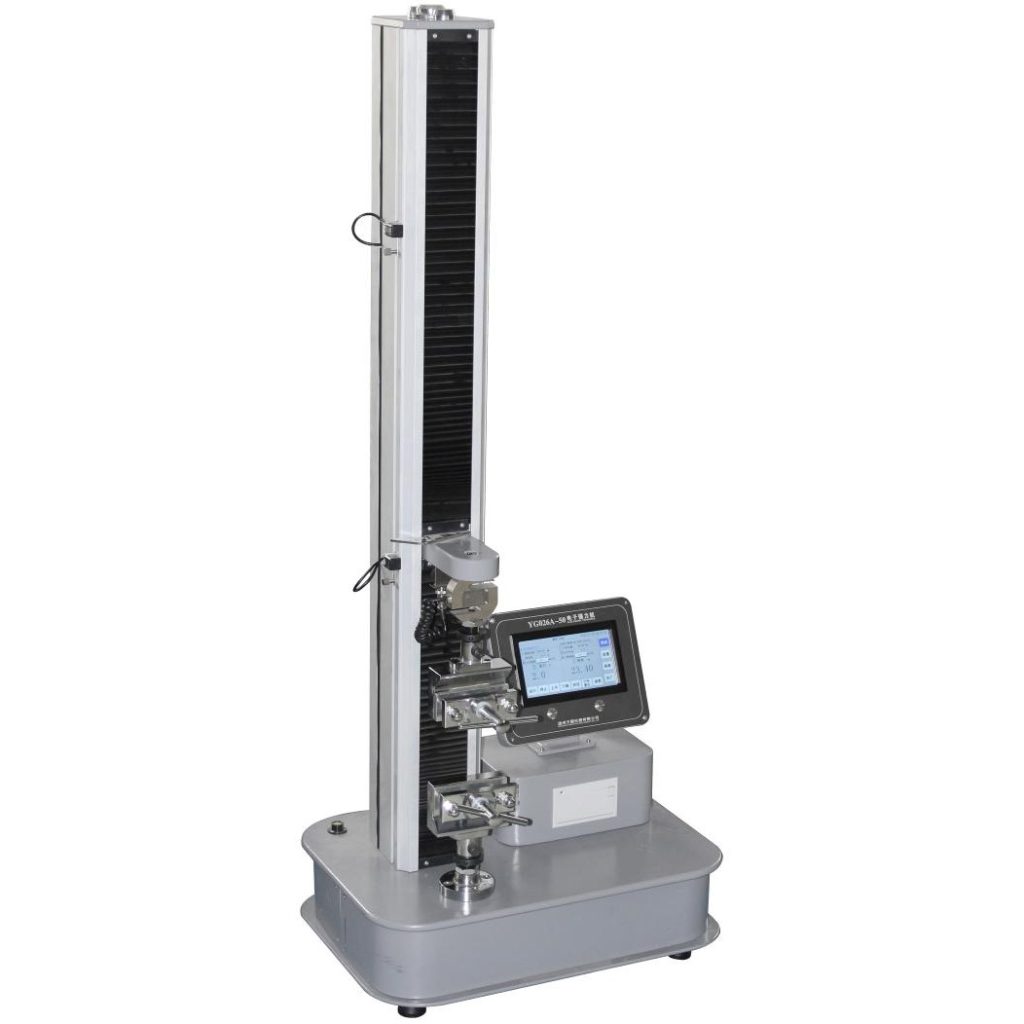

Electronic Zipper Strength Tester

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

This machine can test for crosswise breaking strength of long chain zipper test, holding strength of top stop test, holdingstrength of bottom stop test, open end zipper crosswise strength test, slider puller pull-off strength test, holding strength of sliderlock test hox slinnaae strenath test slider element strenath test of zioper and tensile test of zipper monofilament. zipperwebbing and zipper sewing thread.

Specifications

Model	YFM-YG027A
Capacity	2500N, 0.1N
Power	600W
Volt	220V
Frequency	50 /60 HZ
Motor	1 Phase
Machine length	54cm
Machine width	42cm
Machine height	150cm
Net weight	80 kgs
Gross weight	100 kgs
Dimension (LWH)	6852160cm

Advantages

1. Color touch screen display and control and parallel control with metal buttons.

2. Servo driver and motor (vector control), the motor has short response time,no speed overshoot and uneven speed.
3.Ball screw, precision guide rail, long service life, low noise and small vibration.
4.The encoder imported from Korea precisely controls the positioning and elongation of the instrument.

5. Equipped with high-precision sensor,ST series 32-bit single-chip microcomputer,and 24-bit A/D converter.

6. Optional manual or pneumatic clamps (the clips can be replaced) can be customized according to customer materials.
7.The standard modular design of the whole machine circuit is convenient for instrument maintenance and upgrade.

Download

Product BrochurePreview Download

YFM-YG027A

Request a Quote

Introduction

Specifications

Advantages

Download
