YFM-038

Name: YFM-038
Brand: YFM

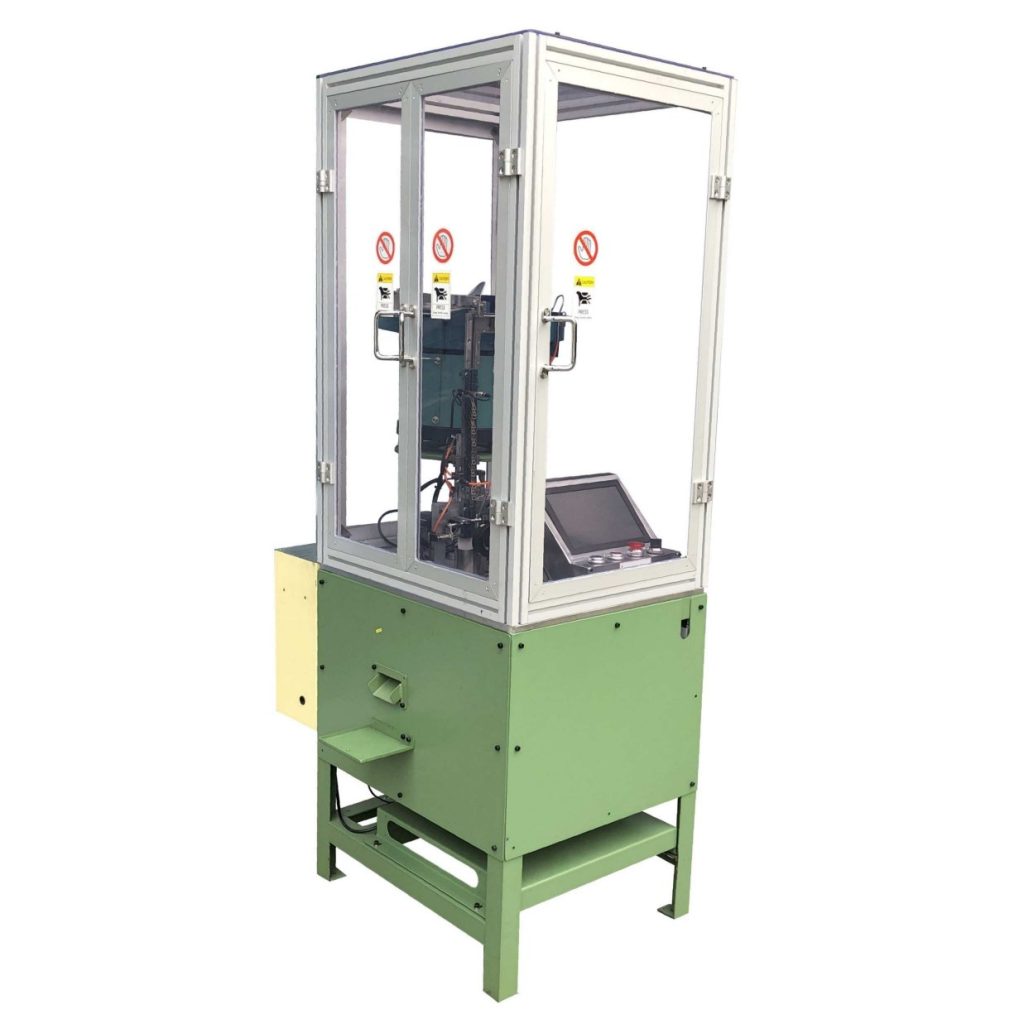

Auto Slider Inspection Machine

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

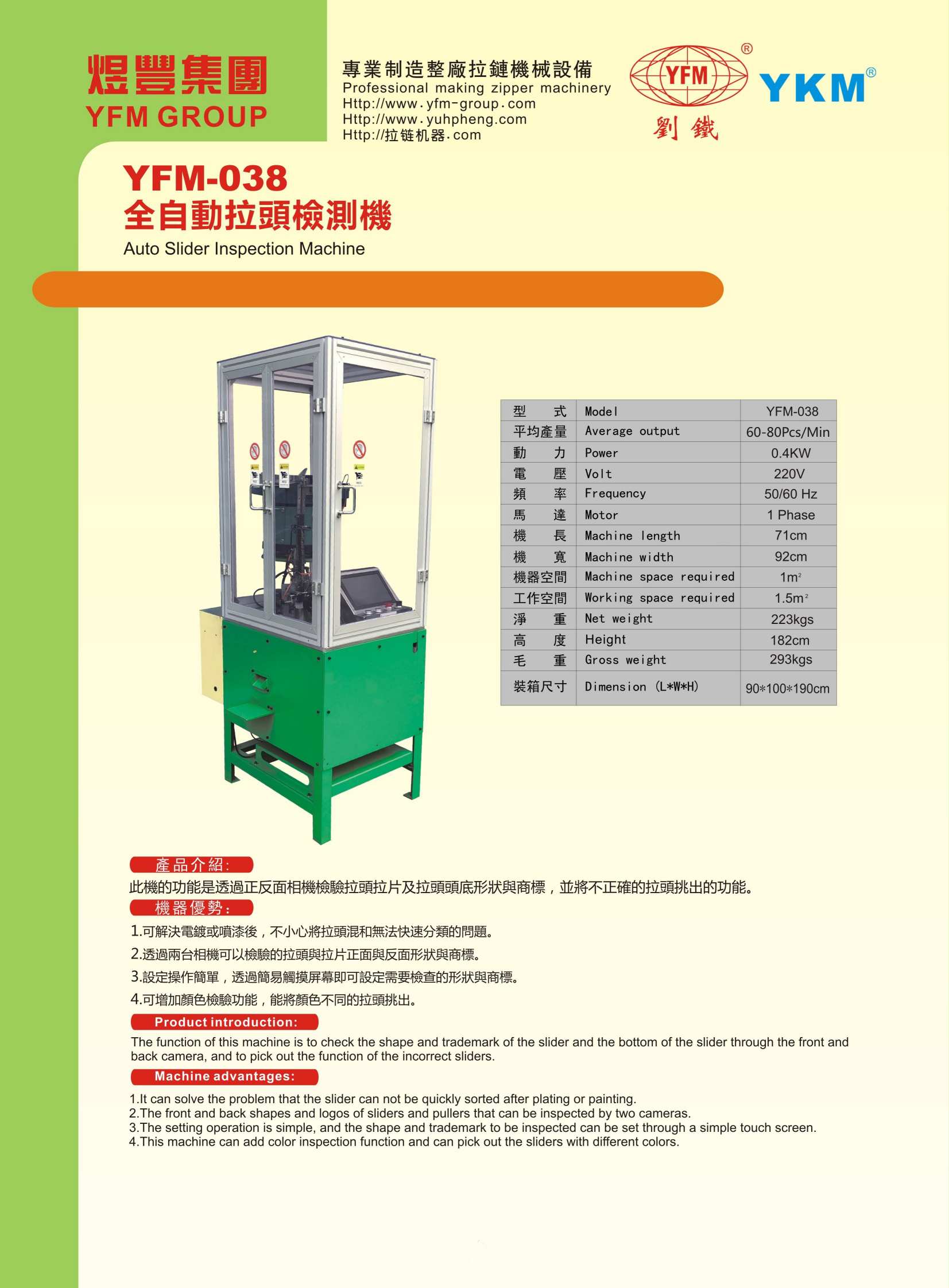

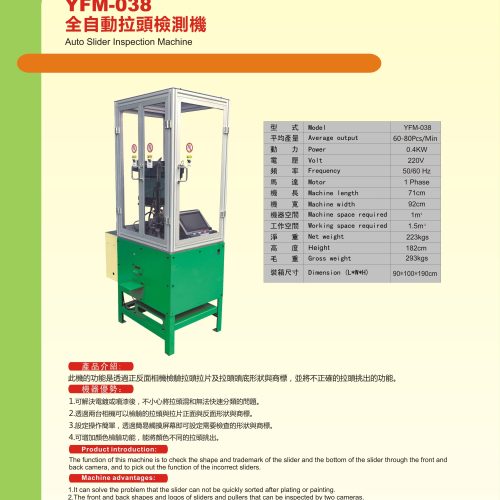

The function of this machine is to check the shape and trademark of the slider and the bottom of the slider through the front and back camera, and to pick out the function of the incorrect sliders.

Specifications

Model	YFM-038
Capacity	60-80Pcs/Min
Power	0.4KW
Volt	220V
Frequency	50/60 Hz
Motor	1 Phase
Machine length	71cm
Machine width	92cm
Machine height	182cm
Net weight	223kgs
Gross weight	293kgs
Dimension (LWH)	90100190cm

Advantages

1.It can solve the problem that the slider can not be quickly sorted after plating or painting.
2.The front and back shapes and logos of sliders and pullers that can be inspected by two cameras.
3.The setting operation is simple, and the shape and trademark to be inspected can be set through a simple touch screen.
4.This machine can add color inspection function and can pick out the sliders with different colors.
