YFM-P1-CL

Name: YFM-P1-CL
Brand: YFM

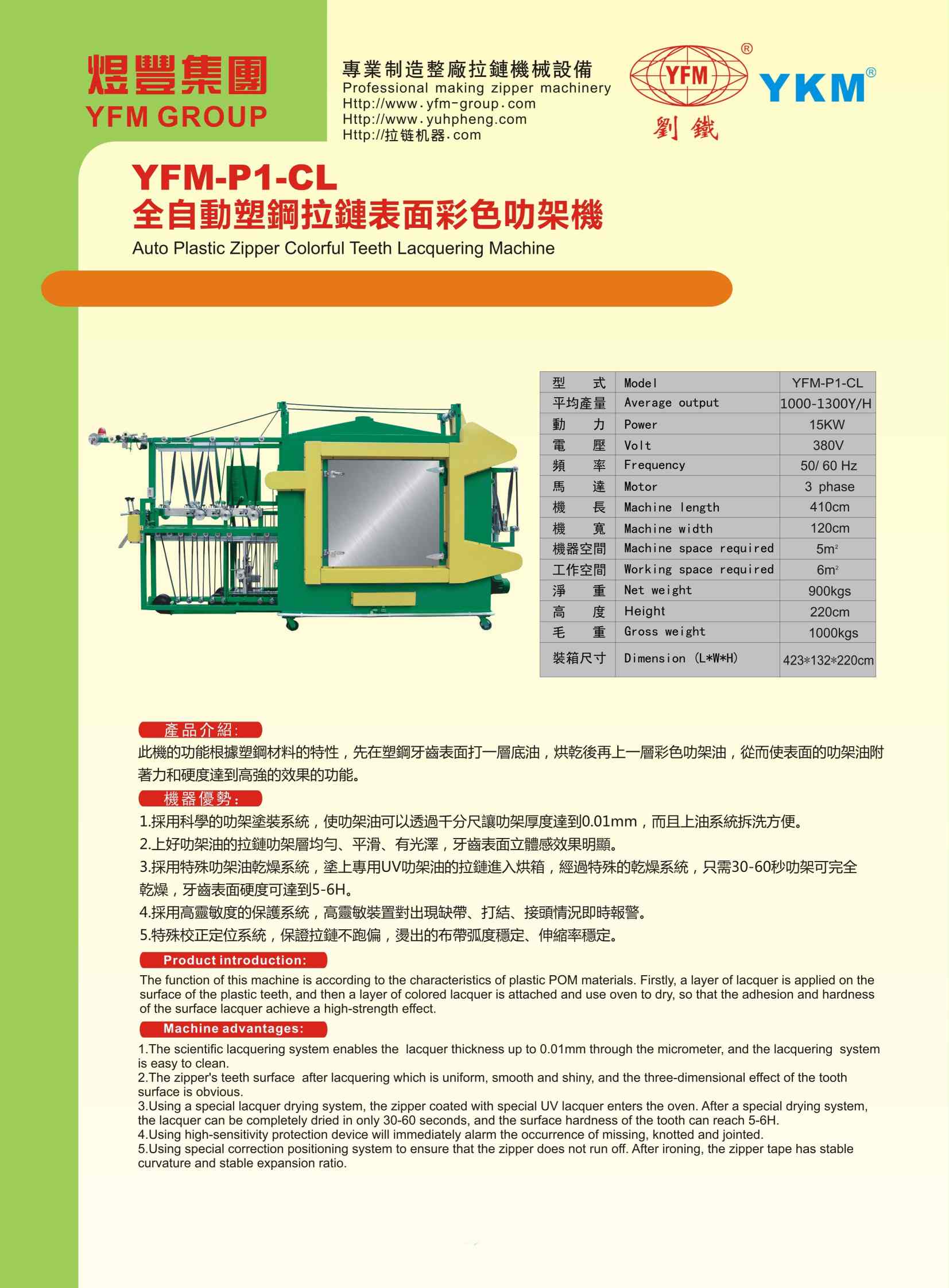

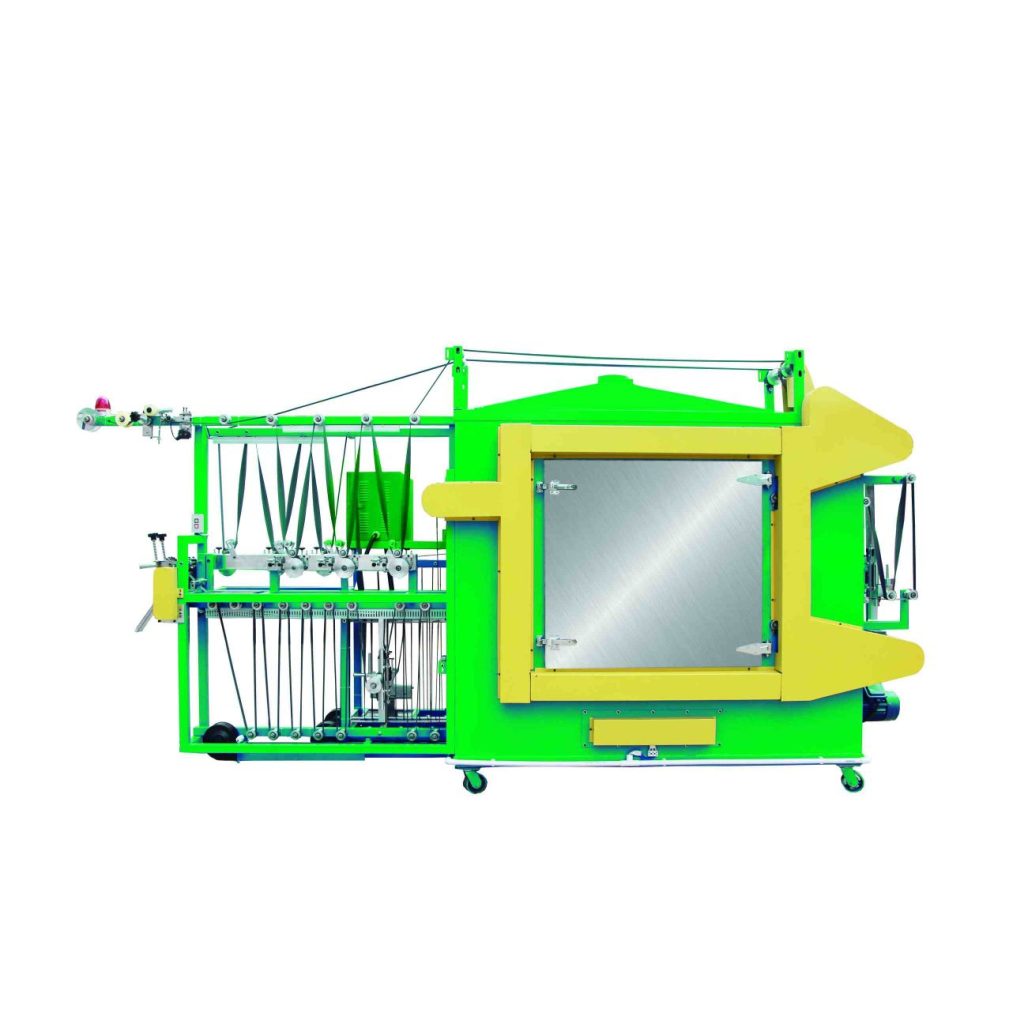

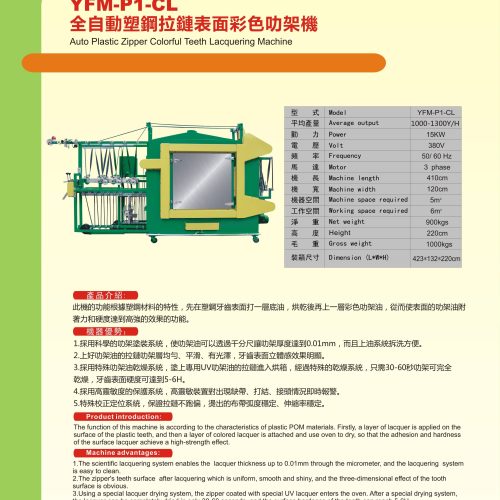

Auto Plastic Zipper Colorful Teeth Lacquering Machine

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

The function of this machine is according to the characteristics of nlastic PoM materials Firstly a laver of lacouer is annlied on the surface of the nlastic teeth and then a laver of colored lacouer is attached and use oven to dry so that the adhesion and hardnese of the surface lacquer achieve a high-strength effect.

Specifications

Model	YFM-P1-CL
Capacity	1000-1300Y/H
Power	15KW
Volt	380V
Frequency	50/60HZ
Motor	3 Phases
Machine length	410cm
Machine width	120cm
Machine height	220cm
Net weight	900kgs
Gross weight	1000kgs
Dimension (LWH)	423132220cm

Advantages

1.The scientific lacquering system enables the lacquer thickness up to 0.01mm through the micrometer, and the lacquering system is easy to clean.
2.The zipper's teeth surface after lacquering which is uniform, smooth and shiny, and the three-Dimension l effect of the tooth surface is obvious.
3.Using a special lacquer drying system, the zipper coated with special UV lacquer enters the oven. After a special drying system,the lacquer can be completely dried in only 30-60 seconds, and the surface hardness of the tooth can reach 5-6H.
4.Using high-sensitivity protection device will immediately alarm the occurrence of missing, knotted and jointed.
5.Using special correction positioning system to ensure that the zipper does not run off. After ironing, the zipper tape has stable curvature and stable expansion ratio.
