YFM-P1-UV

Name: YFM-P1-UV
Brand: YFM

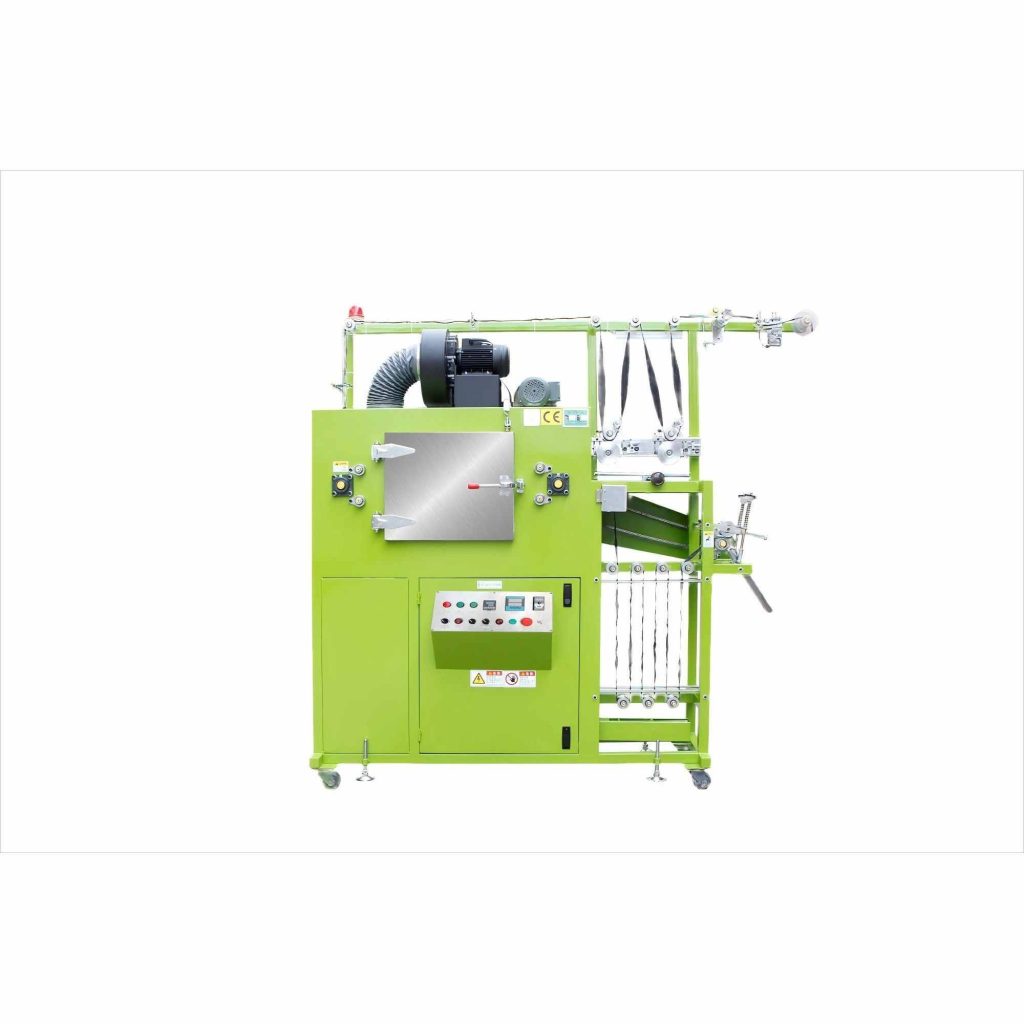

Auto Plastic Zipper Lacquering Machine (UV light)

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

The function of this machine is to attach UV lacquer on the plastic long chain zipper which already attached shiny film on the teethland use UV light oven to dry the UV lacquer and make protection for shiny film.

Specifications

Model	YFM-P1-UV
Capacity	400-600Y/H
Power	2.5KW
Volt	380V
Frequency	50/60HZ
Motor	3 Phases
Machine length	151cm
Machine width	50cm
Machine height	170cm
Net weight	200kgs
Gross weight	250kgs
Dimension (LWH)	22570205cm

Advantages

1. The scientific lacquering system enables the lacquer thickness up to 0.01mm through the micrometer, and the lacquering system is easy to clean.

2. The zipper's teeth surface after lacquering which is uniform, smooth and shiny, and the three-Dimension l effect of the tooth surface is obvious.

3. Using a special lacquer drying system, the zipper coated with special UV lacquer enters the oven. After a special drying system, the lacquer can be completely dried in only 30-60 seconds, and the surface hardness of the tooth can reach 5-6H.

4. Using high-sensitivity protection system, and the high-sensitivity device will immediately alarm the occurrence of missing, knotted and jointed.

5. Using special correction positioning system to ensure that the zipper does not run off.

Download

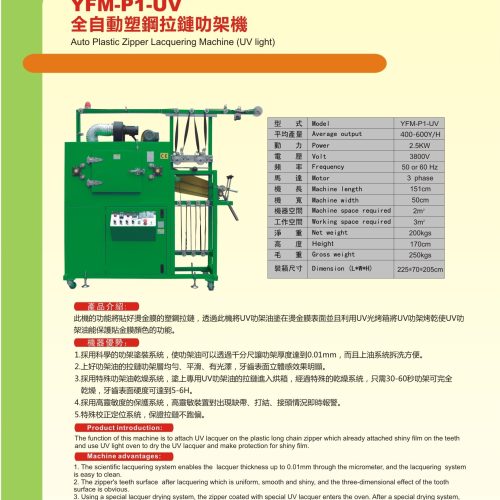

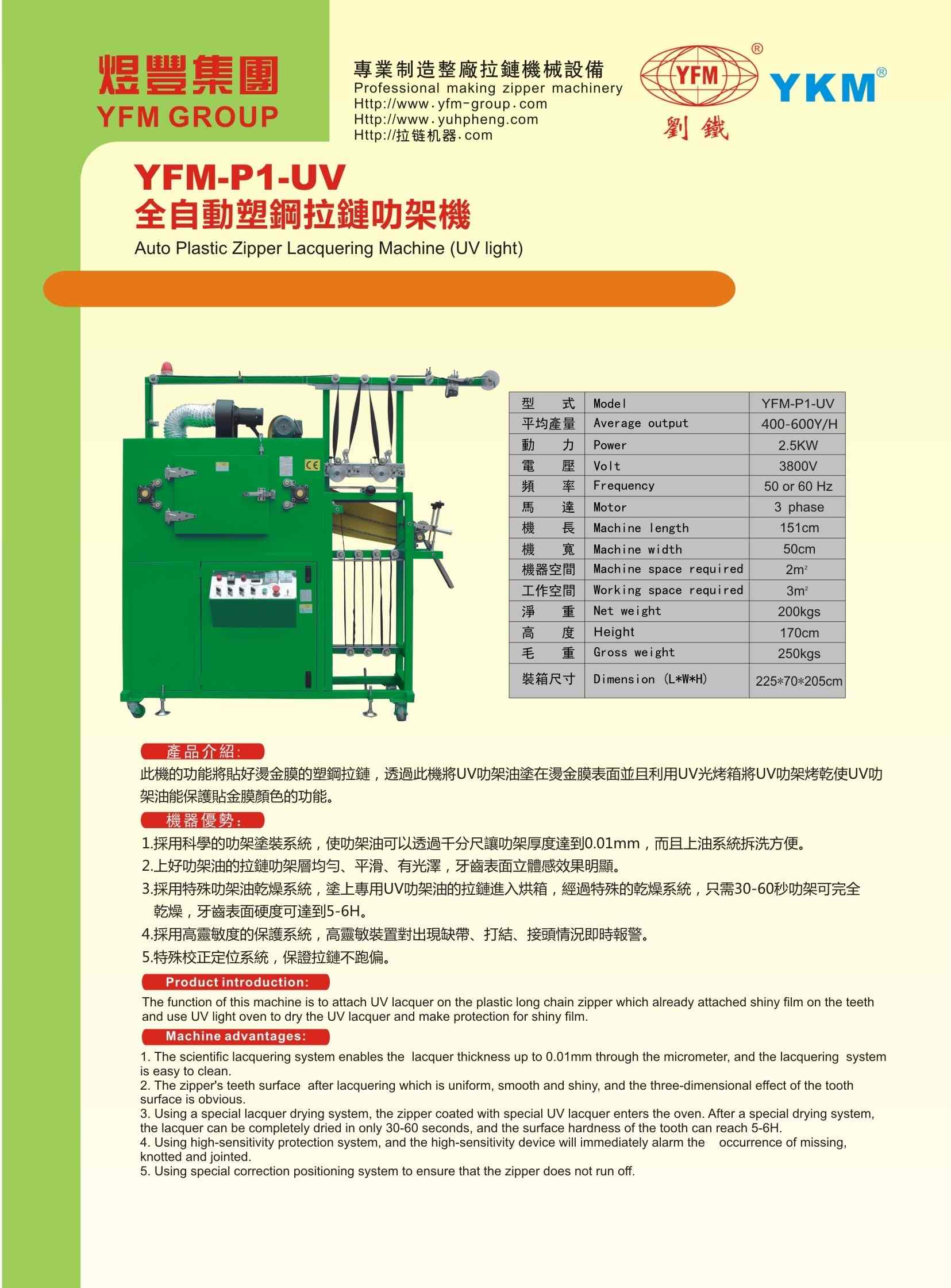

Product BrochurePreview Download
