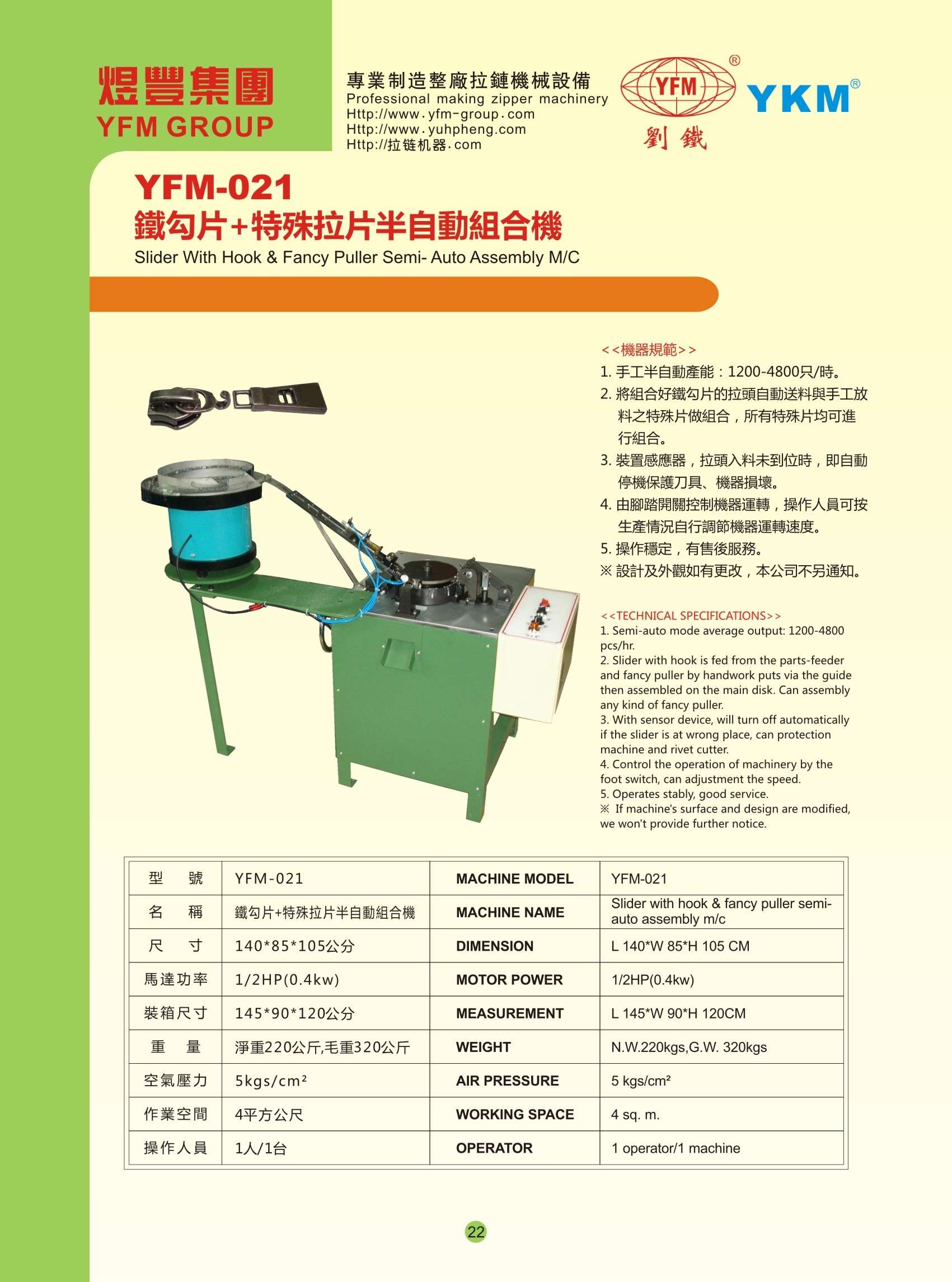

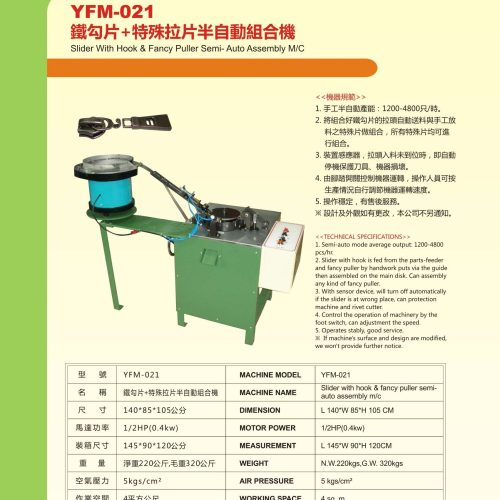

YFM-021 - Slider assembly machine - YFM
YFM-021 - Slider assembly machine - YFM
YFM-021 - Slider assembly machine - YFM
Share

YFM-021

Slider With Hook & Fancy Puller Semi- Auto Assembly M/C

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Specifications

Model YFM-021
Capacity 1200-4800PCS/H
Power 0.4KW
Volt
Frequency
Motor
Machine length 140cm
Machine width 85cm
Machine height 105cm
Net weight 220kgs
Gross weight 320kgs
Dimension (L*W*H) 145*90*120cm

Machine advantages

1. Semi-auto mode average output: 1200-4800 pcs/hr.

2. Slider with hook is fed from the parts-feeder and fancy puller by handwork puts via the guide then assembled on the main disk. Can assembly any kind of fancy puller.

3. With sensor device, will turn off automatically if the slider is at wrong place, can protection machine and rivet cutter.

4. Control the operation of machinery by the foot switch, can adjustment the speed.

5. Operates stably, good service.
