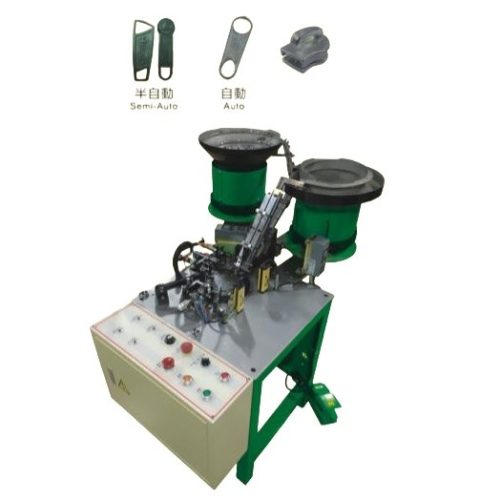

YFM-015C - Slider assembly machine - YFM

YFM-015C

Name: YFM-015C
Brand: YFM

Non-lock Slider auto & semi-auto assembly m/c (Higher Order Type)

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Specifications

Model	YFM-015C
Capacity	Auto mode average output: 4800-6000 PCS/H Semi-auto mode average output:1200-4800 PCS/H
Power	0.4KW
Volt
Frequency
Motor
Machine length	130cm
Machine width	80cm
Machine height	115cm
Net weight	270kgs
Gross weight	350kgs
Dimension (LWH)	13585120cm

Machine advantages

1. Auto mode average output: 4800-6000 pcs /hr.

2. Semi-auto mode average output: 1200-4800 pcs /hr.

3. Auto mode Slider & Normal puller are fed from the partsfeeder via the guide then automatically through rail into deburr cutter, automatic assembly.

4. Semi-auto mode Slider is fed from the parts-feeder via the guide then automatically through rail into de-burr cutter, can assembly any kind of fancy puller by hand.

5. PLC control, with detection function, automatic selection of good or no good products.

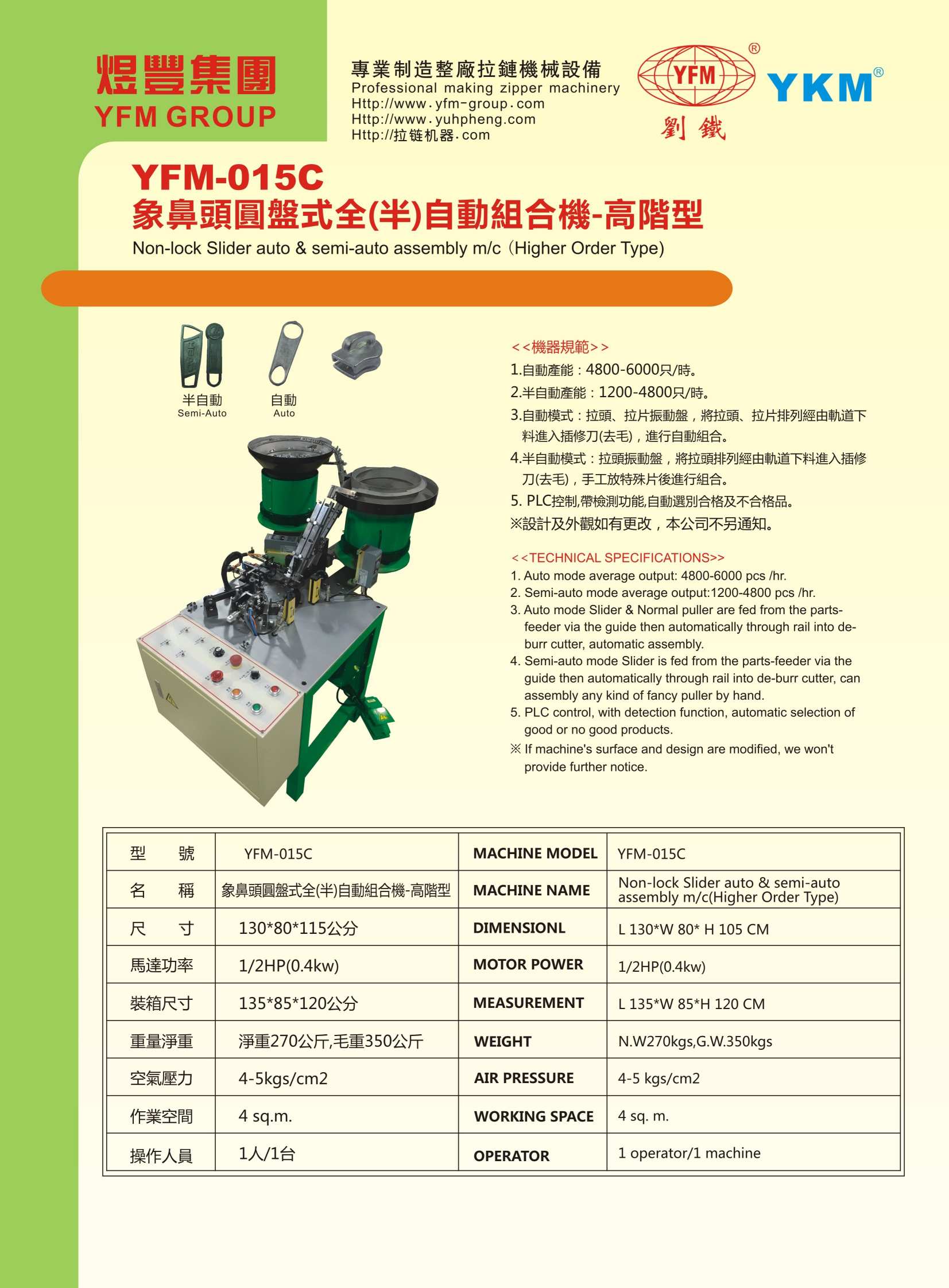

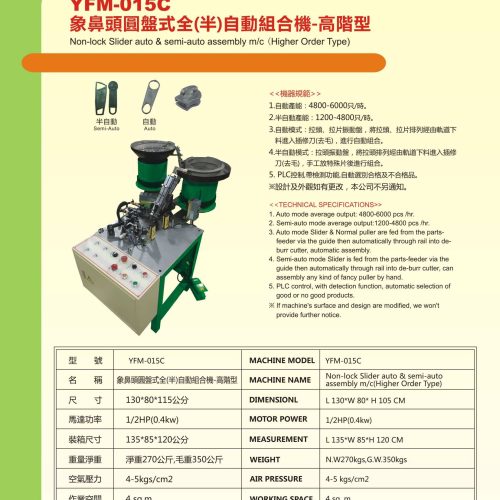

Download

Product BrochurePreview Download
