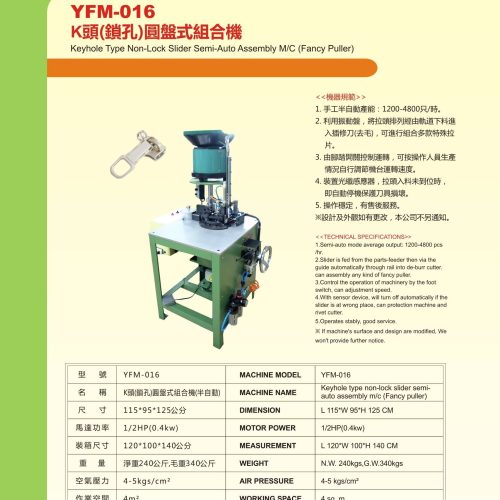

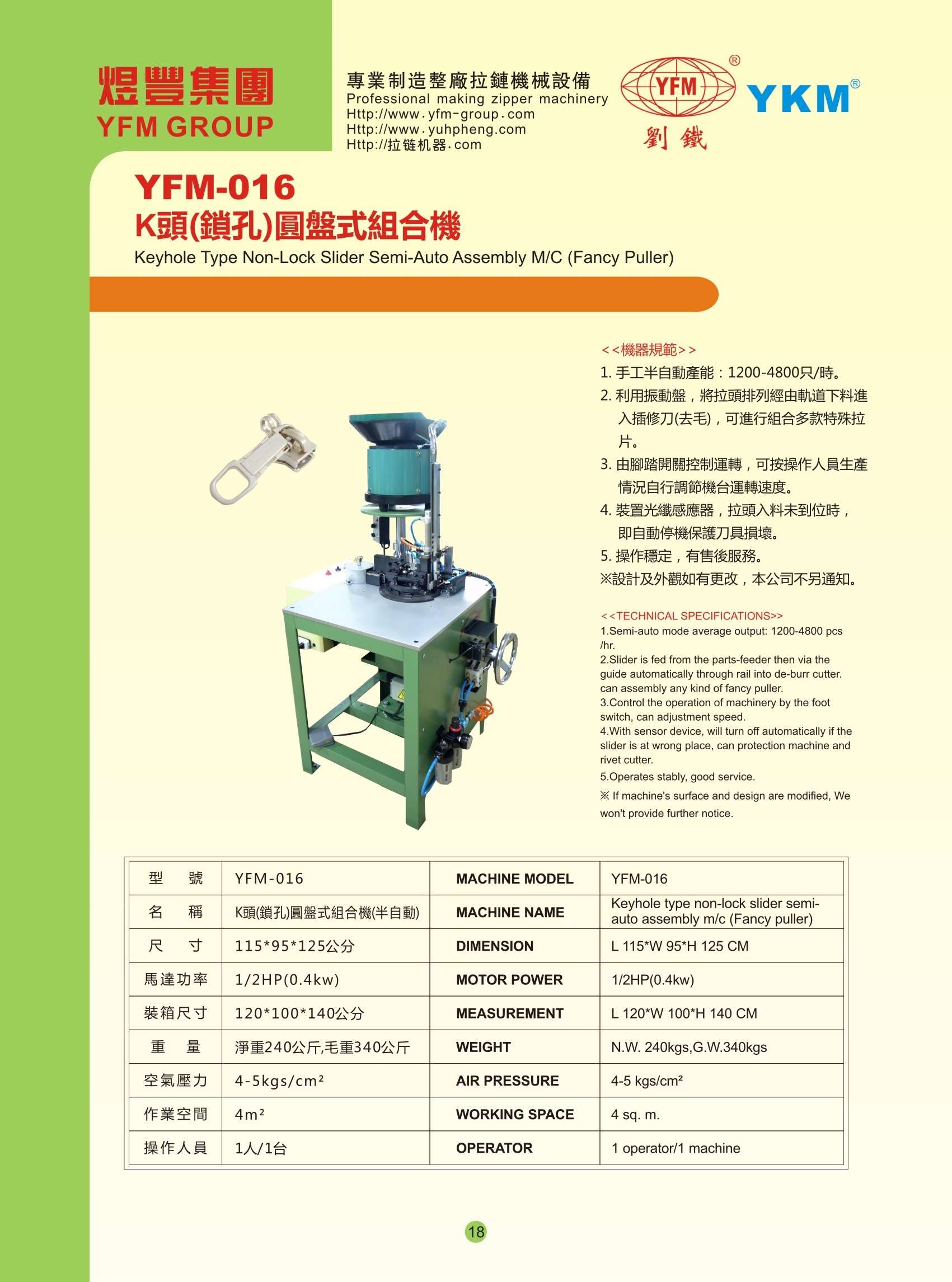

YFM-016 - Slider assembly machine - YFM
YFM-016 - Slider assembly machine - YFM
YFM-016 - Slider assembly machine - YFM
Share

YFM-016

Keyhole Type Non-Lock Slider Semi-Auto Assembly M/C (Fancy Puller)

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Specifications

Model YFM-016
Capacity 1200-4800PCS/H
Power 0.4KW
Volt
Frequency
Motor
Machine length 115cm
Machine width 95cm
Machine height 125cm
Net weight 245kgs
Gross weight 340kgs
Dimension (L*W*H) 120*100*140cm

Machine advantages

1.Semi-auto mode average output: 1200-4800 pcs /hr.
2.Slider is fed from the parts-feeder then via the guide automatically through rail into de-burr cutter. can assembly any kind of fancy puller.
3.Control the operation of machinery by the foot switch, can adjustment speed.
4.With sensor device, will turn off automatically if the slider is at wrong place, can protection machine and rivet cutter.
5.Operates stably, good service.
