YFM-YZ628-CN - Metal long chain machine - YFM

YFM-YZ628-CN

Name: YFM-YZ628-CN
Brand: YFM

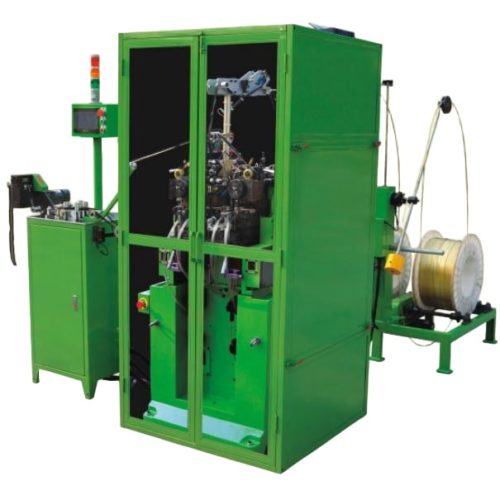

Auto metal double heads Y teeth chain making machine

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

The function of this machine is to cut the metal Y teeth wire and punch the teeth head, and clip Y teeth on the metal zipper tape to make metal zipper chain.

Specifications

Model	YFM-YZ628-CN
Capacity	#3220Y/H #4250Y/H #5 250Y/H #7150Y/H #8160Υ/Η #10 180Y/H
Power	1.8KW
Volt	380V
Frequency	50/60HZ
Motor	3 Phases
Machine length	115cm,108cm,109cm
Machine width	43cm,400cm ,127cm
Machine height	197cm, 208cm, 190cm
Net weight	1060kgs
Gross weight	1400kgs
Dimension (LWH)	Joining Machine:9585195cm, Teeth Macking Machine:12595205cm, Wire Feeding Frame:115135200cm

Advantages

1. By adonting human-machine interface control. operator can set un zinner lenoth and ganning soace directly from the touch screen according to order requirement (cm or inch) which is fast and convenient.

2. If the machine stops in operation, the reasons and location will be shown on the touch screen, Operator can easy to solve the nrnblom on time and inernare to nrnduntiit.

3. One machine can produce two single sides of metal chain and use joining machine to join and roll the metal chain becomes Y teeth long chain zipper.

4. You can choose the sound box to isolate the noise effectively.

Download

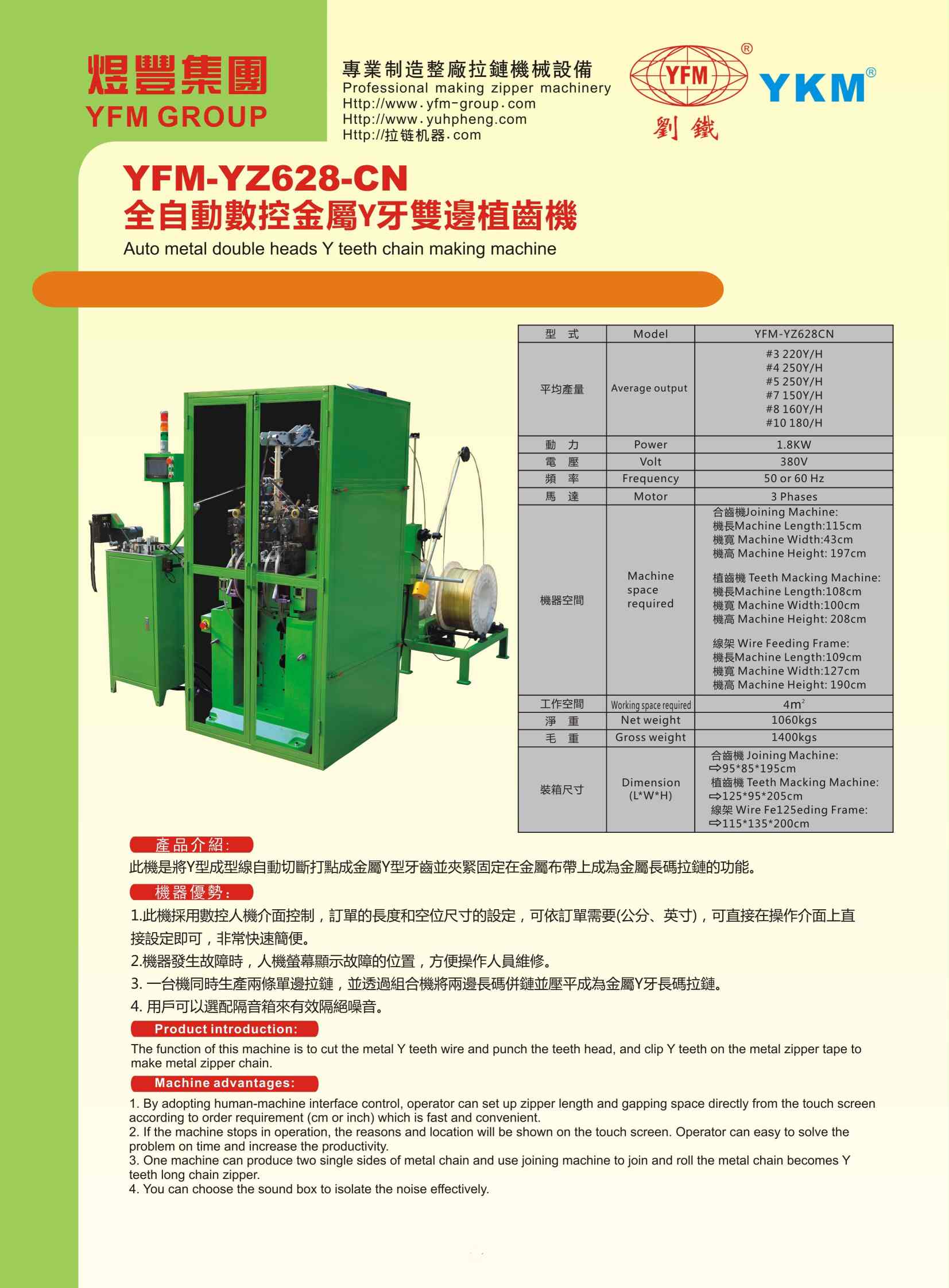

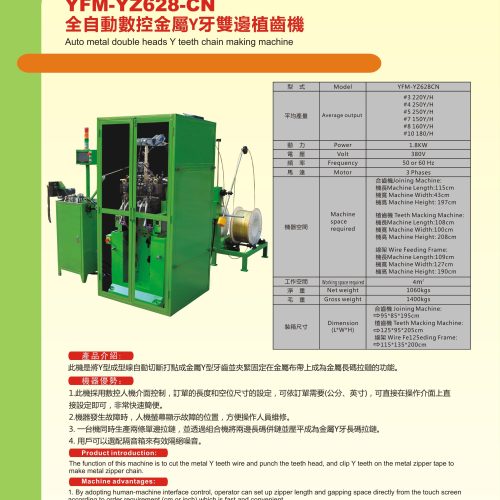

Product BrochurePreview Download
