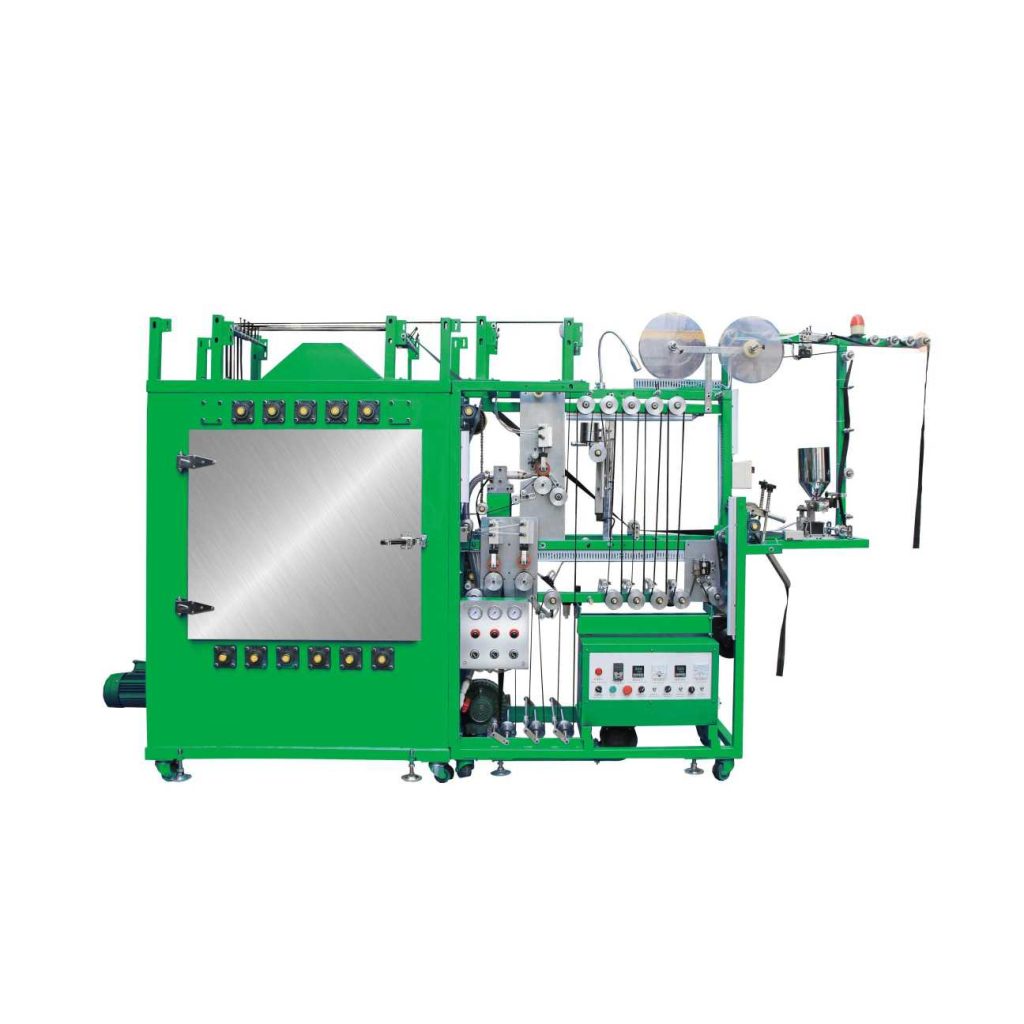

YFM-P1-G3 - Metal long chain machine - YFM

YFM-P1-G3

Name: YFM-P1-G3
Brand: YFM

Auto Waterproof Zipper Mucilage Ironing With Film Sealing & Middle Separate Machine (3 in 1)

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

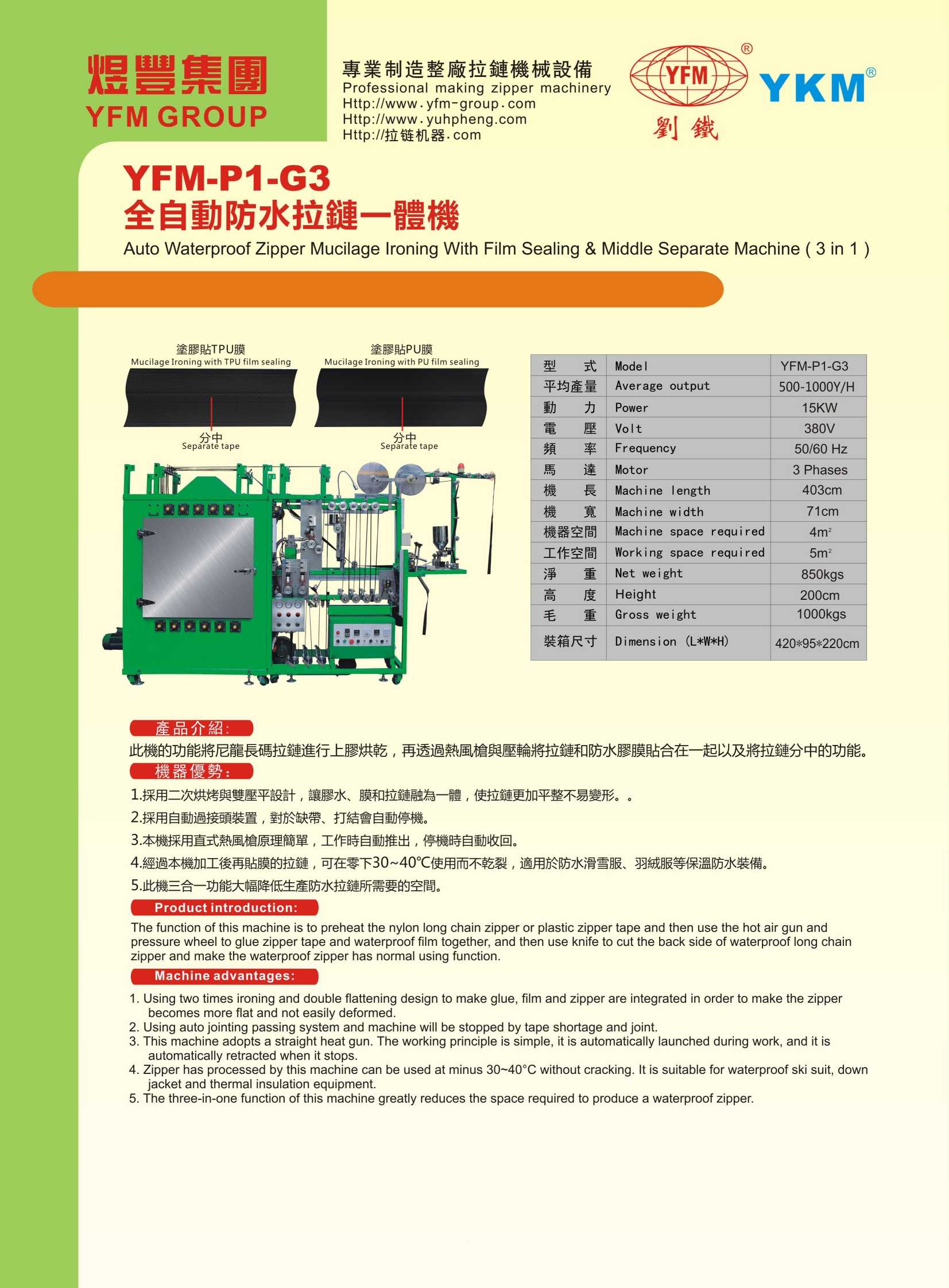

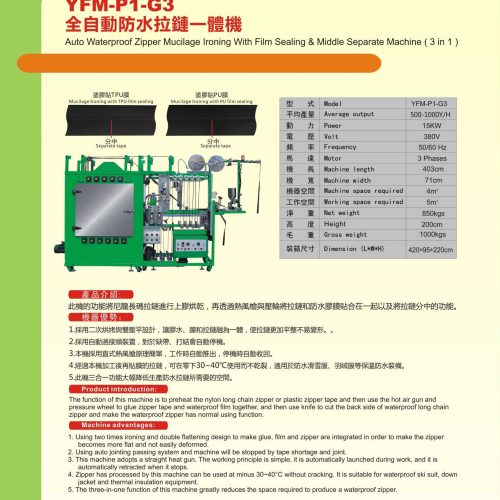

Product introduction

The function of this machine is to preheat the nvlon long chain zipper or plastic zipper tape and then use the hot air qun and pressure wheel to alue zipper tape and waterproof film together, and then use knife to cut the back side of waterproof long chain zipper and make the waterproof zipper has normal using function.

Specifications

Model	YFM-P1-G3
Capacity	500-1000Y/H
Power	15KW
Volt	380V
Frequency	50/60Hz
Motor	3Phases
Machine length	403cm
Machine width	71cm
Machine height	200cm
Net weight	850kgs
Gross weight	1000kgs
Dimension (LWH)	42095220cm

Machine advantages

1. Using two times ironing and double flattening design to make glue, film and zipper are integrated in order to make the zipperd becomes more flat and not easily deformed.

2. Using auto jointing passing system and machine will be stopped by tape shortage and joint.

3. This machine adopts a straight heat gun. The working principle is simple, it is automatically launched during work, and it isd automatically retracted when it stops.

4. Zipper has processed by this machine can be used at minus 30-40°C without cracking. It is suitable for waterproof ski suit, downd jacket and thermal insulation equipment.

5. The three-in-one function of this machine greatly reduces the space required to produce a waterproof zipper.

Download

Product BrochurePreview Download
