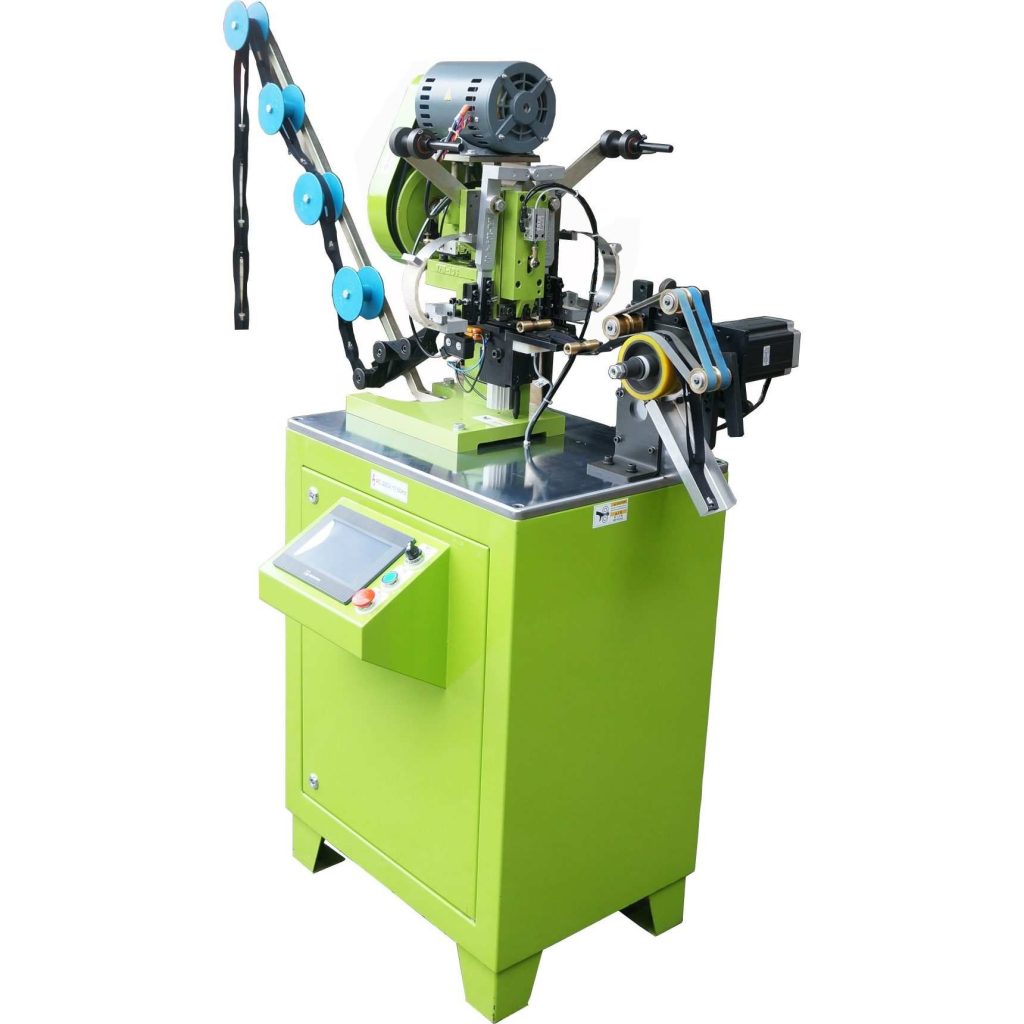

YFM-3NSCA

Name: YFM-3NSCA
Brand: YFM

Auto nylon double top stop M/C by computer control for fancy puller

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Introduction

The function of this machine to automatically cut off brass wire or aluninum wire to Iding and fix into top stop of mylon open or close end zipper, which has been slider mouned.

Specifications

Model	YFM-3NSCA
Capacity	2400PCS/50CM/H
Power	1KW
Volt	220V
Frequency	50 or 60 Hz
Motor	1 Phase
Machine length	130cm
Machine width	70cm
Machine height	145cm
Net weight	162kgs
Gross weight	221kgs
Dimension (LWH)	8070150cm

Advantages

1. It can be used for open end or close end zipper, and the shortest length is only 5CM.

2. This machine is using step motor control system and it has two running speed which can be adjusted, this system will improve the product's stability and production efficiency.

3. By adopting human-machine interface control, this machine can be operated easily. If the machine stops suddenly in operation, the reasons will be shown on the screen which is very useful for the operator to deal with the problems. Moreover, you can find out the information such as what the problem was, and when the problem happened.

4. Unique transmission design which can use for the fancy puller(Puller's width is not exceed 1.5cm, the length is not exceed 3cm), moreover, it can be used for both open-end and close-end.

Download

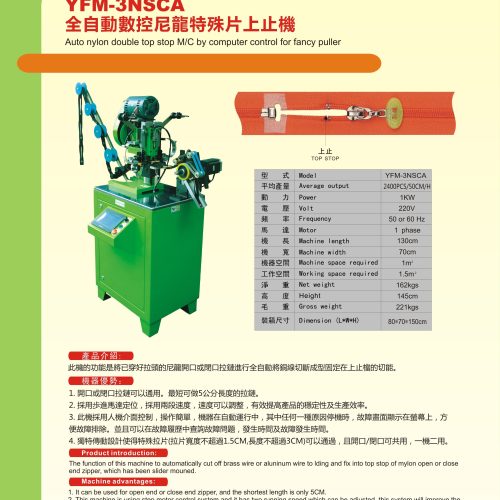

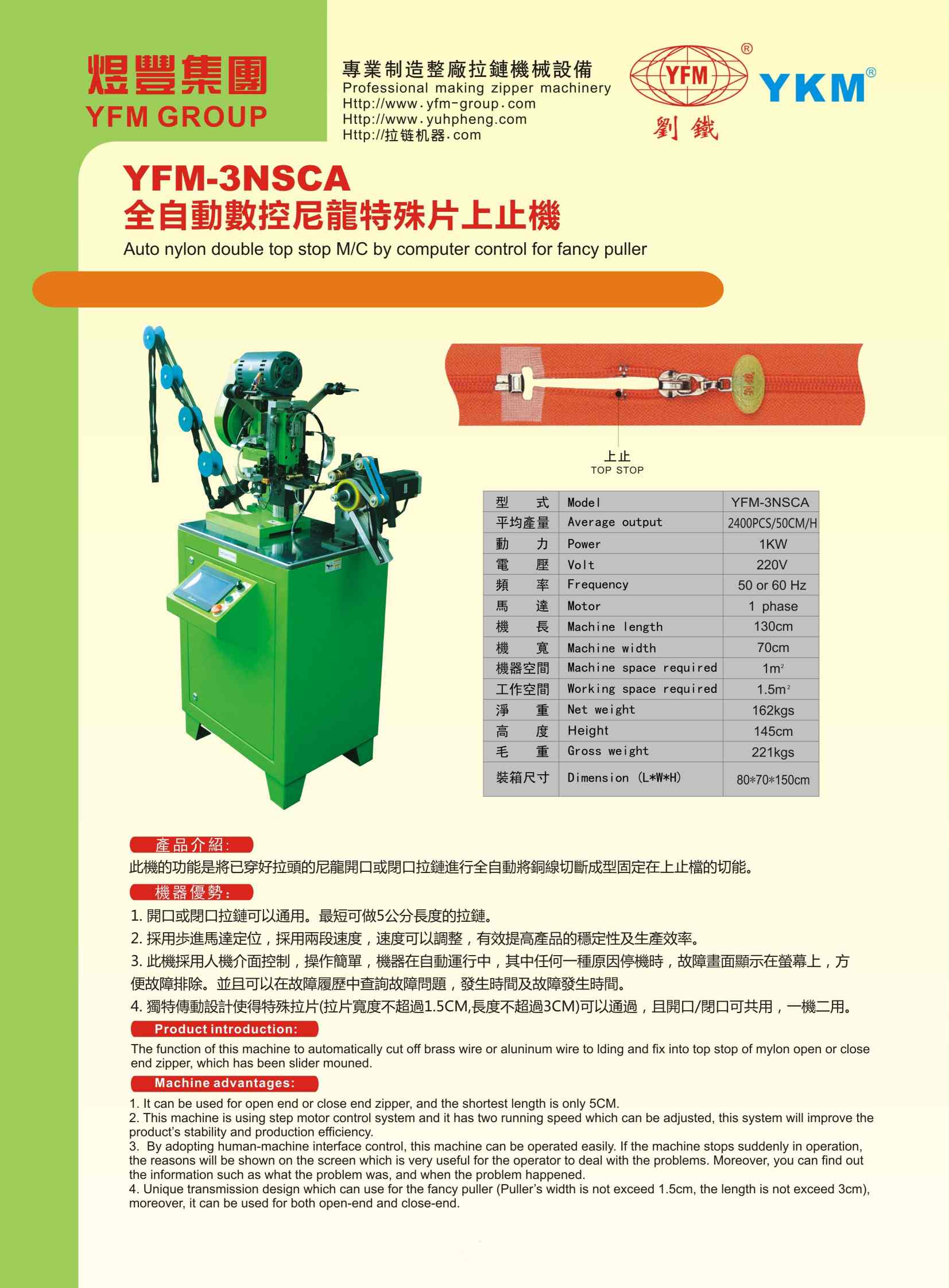

Product BrochurePreview Download
