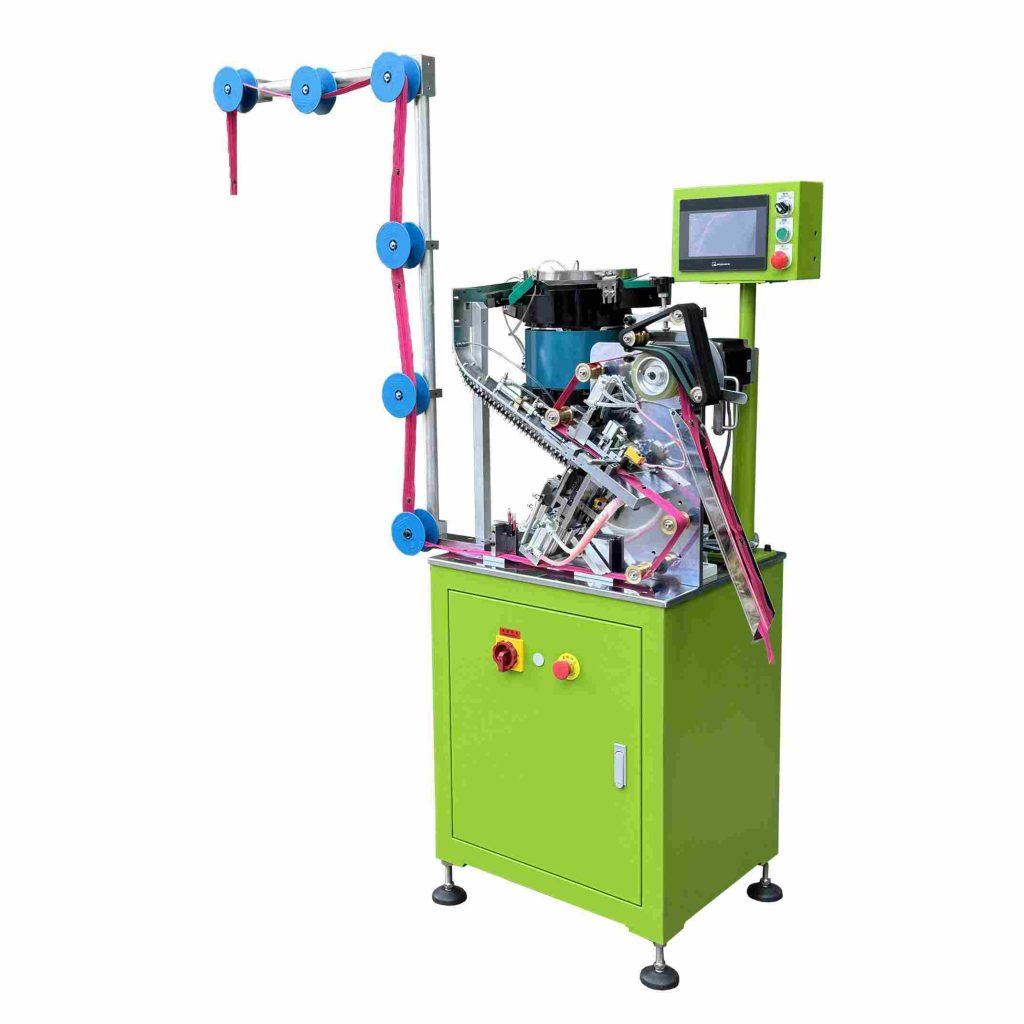

Auto side feeding slider mounting machine by computer control
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Introduction
The function of this machine can mount nornal or reverse zipper (only choose one zipper type) different types of sliders ( choose one slider type) through the side feed device to feed slider into mounting mold and can mount open end, close end, and no bottom stop zipper, top stop side closed zipper and double closed zipper through the settings of the HMI touch screen to mount.
Specifications
Model
YFM-2N/M/DCA-F
Capacity
2000PCS/20CM/H
Power
1.3KW
Volt
220V
Frequency
50 or 60 Hz
Motor
1 Phases
Machine length
150cm
Machine width
60cm
Machine height
190cm
Net weight
195kgs
Gross weight
280kgs
Dimension (L*W*H)
110*80*175cm
Advantages
1.The advantage of this machine is that special long puller or fancy puller sliders are fed from the side of the slider mold into the slider mounting mold through the side feeding system. The tolerance for the puller of the slider is greater, and the unique slider mounting mold design can be adjusted to accept sliders with a wider tolerance range than traditional slider mounting molds.
2.This machine adopts human-machine interface (HMl) control and is easy to operate. When the machine is running automatically, if it stops for any reason, the fault screen will be displayed on the screen to facilitate troubleshooting. And you can check the fault problem, occurrence time and troubleshooting time in the fault history.
3.This machine can be set through the HMI touch control screen to have the functions of close end, no bottom stop, top stop side closed and double sides closed zipper. For open end zippers with short gapping space, you can also select special functions to mount the slider into the zippers with short gapping space open end zipper.
