YFM-026D

Name: YFM-026D
Brand: YFM

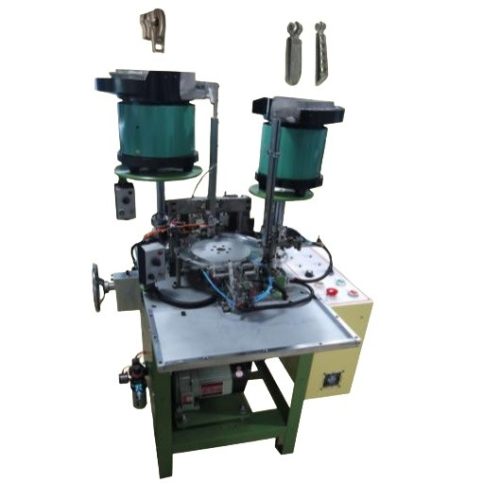

Slider With Ring & Fancy Puller Auto (Semi-Auto) Assembly M/C

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Specifications

Model	YFM-026D
Capacity	Auto mode 3000 PCS/H Semi-auto mode 1200-3000 PCS/H
Power	0.4KW
Volt
Frequency
Motor
Machine length	100cm
Machine width	95cm
Machine height	135cm
Net weight	230kgs
Gross weight	320kgs
Dimension (LWH)	125100135cm

1. Average output: auto mode 3000 pcs/hr.Semi-auto mode 1200-3000 pcs/hr.

2. Slider with ring and fancy puller are fed from the parts-feeder then auto-assembled on the main disk. Enhances work benefit.

3. Can switch auto mode and semi-auto mode to assembly most of fancy puller.

4. With sensor device, will turn off automatically if the slider is at wrong place, can protection machine and rivet cutter.

5. Operates stably, good service.
