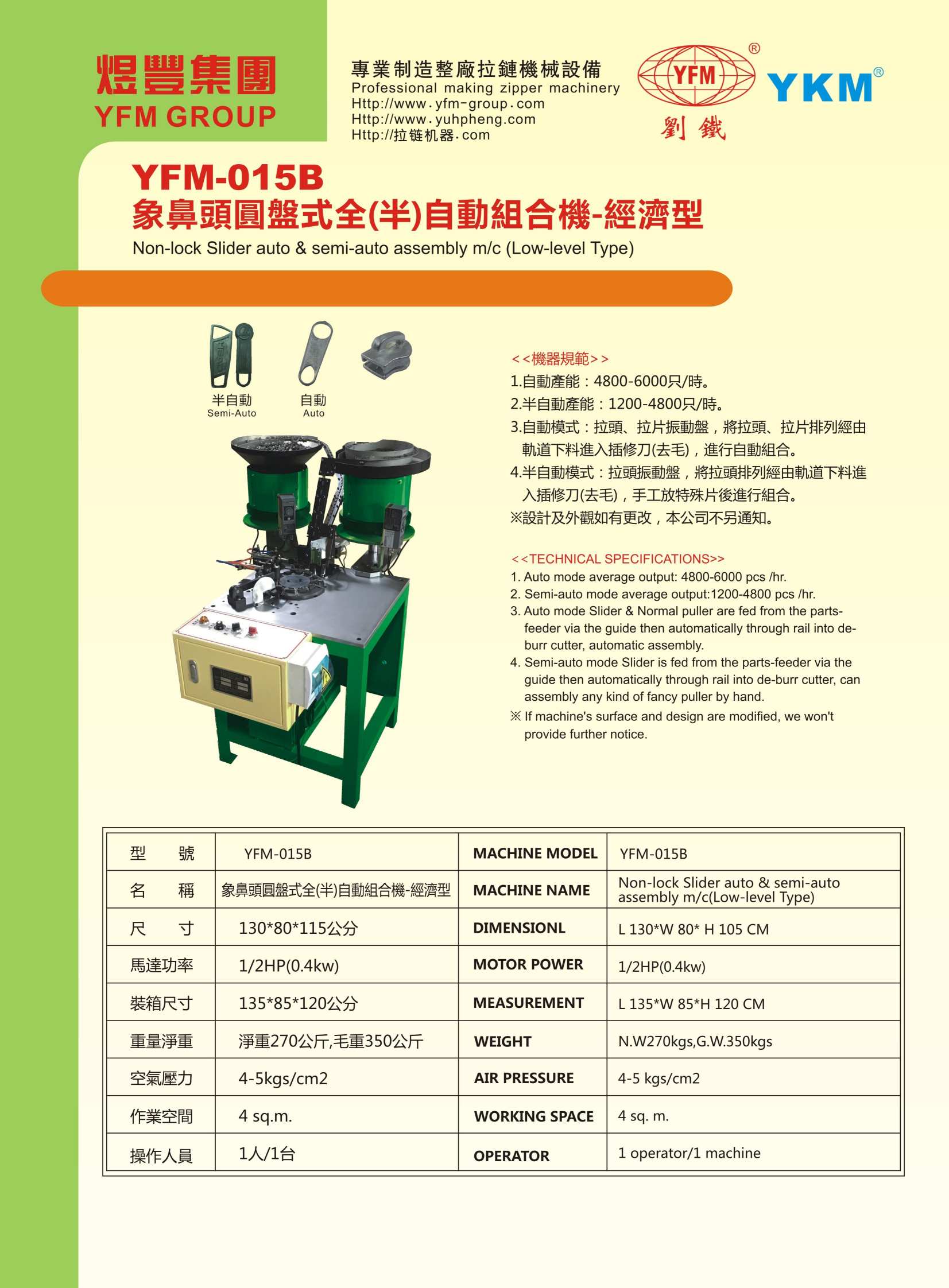

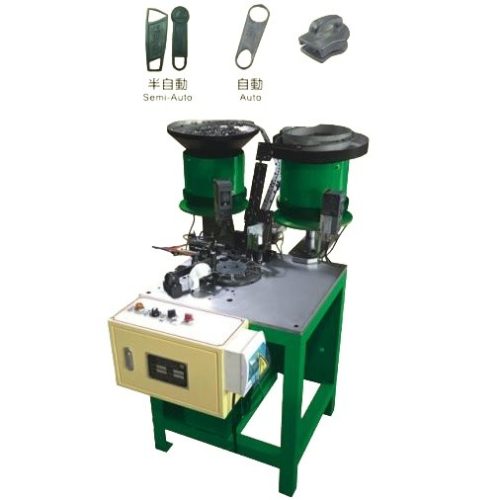

YFM-015B

Non-lock Slider auto & semi-auto assembly m/c (Low-level Type)

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Specifications

Model YFM-015B
Capacity Auto mode average output: 4800-6000 PCS/H
Semi-auto mode average output:1200-4800 PCS/H
Power 0.4KW
Volt
Frequency
Motor
Machine length 130cm
Machine width 80cm
Machine height 115cm
Net weight 270kgs
Gross weight 350kgs
Dimension (L*W*H) 135*85*120cm

Machine advantages

1. Auto mode average output: 4800-6000 pcs /hr.

2. Semi-auto mode average output:1200-4800 pcs /hr.

3. Auto mode Slider & Normal puller are fed from the partsfeeder via the guide then automatically through rail into deburr cutter, automatic assembly.

4. Semi-auto mode Slider is fed from the parts-feeder via the guide then automatically through rail into de-burr cutter, can assembly any kind of fancy puller by hand.
